Part	Number of Positions	Number of Rows	Cable Termination	Contact Type	Connector Type	Contact Finish	Pitch	Wire Gauge	Mounting Type	Color	Wire Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Insulation Color	Features	Insulation Material	Voltage Rating	Insulation Height	Pitch - Mating	Termination	Number of Positions Loaded	Shrouding	Style	Material Flammability Rating	Fastening Type	For Use With/Related Products	Tool Type	Contact Finish - Mating	Note	Contact Termination	Housing Color	Contact Finish Thickness	Current Rating	Flat Flex Type	Cable End Type	FFC, FCB Thickness	Housing Material	Connector/Contact Type
Hirose Electric Co Ltd DF19G-20S-1SD	20	1	IDC	Female Socket	Plug	Gold	0.039 in	40 AWG	Free Hanging (In-Line)	Beige	Ribbon Cable
Hirose Electric Co Ltd DF19G-20S-1SD(06)	20	1	IDC	Female Socket	Plug	Gold	0.039 in	40 AWG	Free Hanging (In-Line)	Beige	Ribbon Cable
Hirose Electric Co Ltd DF19G-20P-1H(77)	20	1		Male Pin	Receptacle				Right Angle Surface Mount			85 °C	-35 °C	Phosphor Bronze	Black	Glow Wire Compliant Shielded Solder Retention	Nylon Polyamide (PA)	100 VAC	0.065 in	0.039 in	Solder	All	Shrouded - 3 Wall	Board Cable/Wire	UL94 V-0	Friction Lock
Hirose Electric Co Ltd DF19G-20S/PR-MD2																											Grounding Plates	Insertion Tool
Hirose Electric Co Ltd DF19G-14P-1H(56)	14	1		Male Pin	Receptacle				Right Angle Surface Mount			85 °C	-35 °C	Phosphor Bronze	Black	Glow Wire Compliant Shielded Solder Retention	Nylon Polyamide (PA)	100 VAC	0.065 in	0.039 in	Solder	All	Shrouded - 3 Wall	Board Cable/Wire	UL94 V-0	Friction Lock			Gold
Hirose Electric Co Ltd DF19G-30S-1C(05)	30	1		Female Socket	Plug		0.039 in		Free Hanging (In-Line)	Beige																				Contacts Not Included	Crimp
Hirose Electric Co Ltd DF19G-20S-1FH(05)	20					Gold	0.039 in		Free Hanging (In-Line)			85 °C	-35 °C	Phosphor Bronze				100 VAC			IDC				UL94 V-0							Beige	3.94 µin	0.5 A	FPC	Tapered	0.14 mm	Nylon PA Polyamide	Receptacle
Hirose Electric Co Ltd DF19G-14S-1SD(06)	14	1	IDC	Female Socket	Plug	Gold	0.039 in	40 AWG	Free Hanging (In-Line)	Beige	Ribbon Cable
Hirose Electric Co Ltd DF19G-14S/PR-MD2																											Grounding Plates	Insertion Tool
Hirose Electric Co Ltd DF19G-20S-1C(06)	20	1		Female Socket	Plug		0.039 in		Free Hanging (In-Line)	Beige																				Contacts Not Included	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

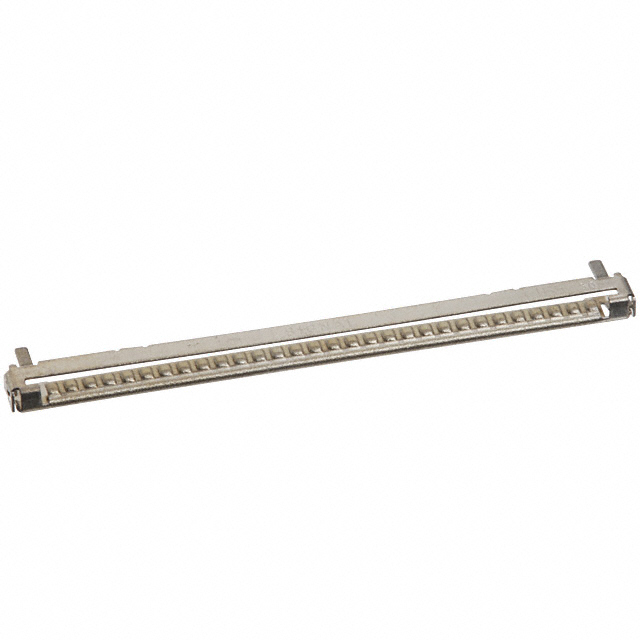

DF19G-30S-1F-GND | Datasheet
