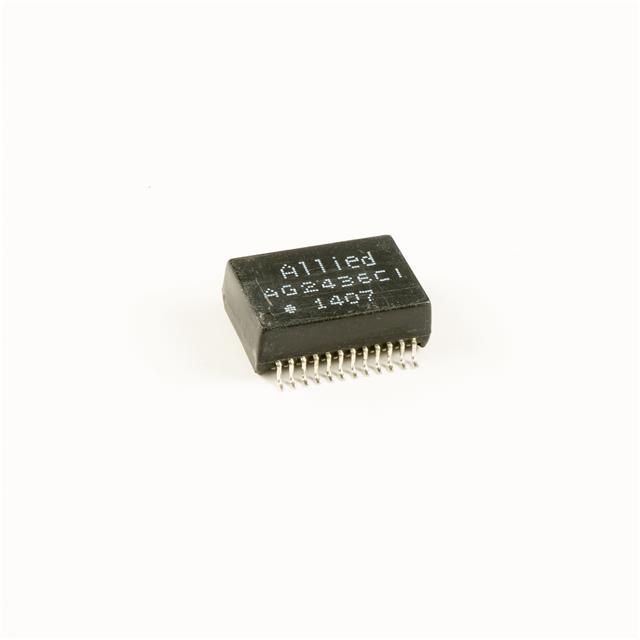

AG2436CI
ActiveAllied Components International
10/100/1000 BASE T SINGLE LAN
AG2436CI
ActiveAllied Components International
10/100/1000 BASE T SINGLE LAN
Description
General part information
AG2436CI
350µH LAN 10/100/1000 Base-T Pulse Transformer 1:1CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AG2436CI |
|---|---|
| Height - Seated (Max) | 0.256 in |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.717 in |
| Size / Dimension Width | 0.478 in |
| Transformer Type | LAN 10, 1000 Base-T, 100 |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
