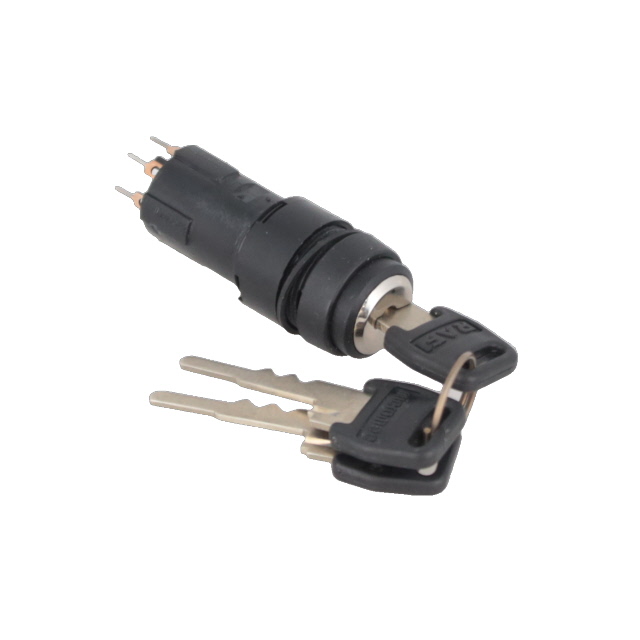

1.10.117.617/0000

Obsolete

RAFI USA

SWITCH KEYLK 4POS SP3T 100MA 35V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH KEYLK 4POS SP3T 100MA 35V

Technical Specifications

Parameters and characteristics for this part

Specification	1.10.117.617/0000

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	SP3T
Contact Finish	Gold
Contact Timing	Not Specified
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Key Removable Positions	Center
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-On-On-On
Termination Style	Solder Lug
Voltage Rating - DC	35 V

SWITCH KEYLK 4POS SP3T 100MA 35V

Part	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Circuit	Current Rating (Amps)	Angle of Throw	Contact Timing	Termination Style	Key Removable Positions	Electrical Life	Contact Finish	Number of Positions	Switch Function	Voltage Rating - DC
RAFI USA 1.10.117.617/0000	16.2 mm	70 °C	-25 °C	Flat Key	SP3T	100 mA	90 °	Not Specified	Solder Lug	Center	50000 Cycles	Gold	4	Off-On-On-On	35 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Keylock Switch 4 Position SP3T 100mA (AC/DC) 35 VAC 35 VDC Panel Mount

Technical documentation and resources

No documents available
