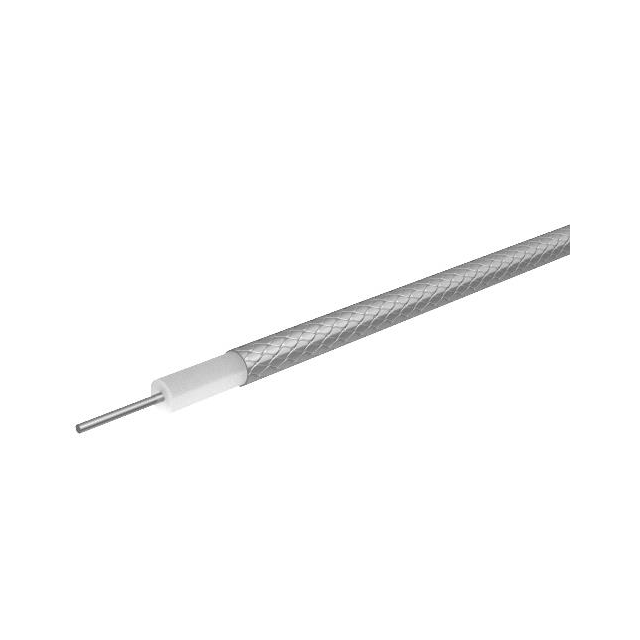

SUCOFORM_47_CU
ActiveHuber+Suhner, Inc.
CABLE COAXIAL METER
SUCOFORM_47_CU
ActiveHuber+Suhner, Inc.
CABLE COAXIAL METER
Description
General part information
SUCOFORM_47_CU
Coaxial Cable Enter Number of Meters in Order Quantity 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SUCOFORM_47_CU |
|---|---|
| Cable Type | Coaxial |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand | Solid |
| Dielectric Diameter | 0.037 in |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Impedance | 50 Ohm |
| Length | Enter Number of Meters in Order Quantity |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Coverage | 100 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Spool Size | 328.1 ft |
| Velocity of Propagation (VoP) | 71 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
