1011614CO

Active

Integrated Power Designs

CE-225-2001CO

Search across all available documentation for this part.

Active

Integrated Power Designs

CE-225-2001CO

Technical Specifications

Parameters and characteristics for this part

Specification	1011614CO

Applications	ITE (Commercial), Medical
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	10 A
Current - Output 2	8 A
Efficiency	74 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	225 W
Size / Dimension [x]	203.2 mm
Size / Dimension [x]	8 "
Size / Dimension [y]	120.7 mm
Size / Dimension [y]	4.75 in
Size / Dimension [z]	2.17 "
Size / Dimension [z]	55.1 mm
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

CE-225-2001CO

Part	Voltage - Output 2	Applications	Current - Output 1	Power (Watts)	Features	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output 2	Type	Approval Agency	Number of Outputs	Standard Number	Voltage - Output 1	Mounting Type
Integrated Power Designs 1011614CO	-12 V	ITE (Commercial), Medical	10 A	225 W	Adjustable Output, Remote Sense, Universal Input	74 %	70 °C	0 °C	120.7 mm	2.17 "	203.2 mm	55.1 mm	4.75 in	8 "	8 A	Enclosed	CE, cURus, TUV, UKCA	2	60601-1, 62368-1	12 V	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

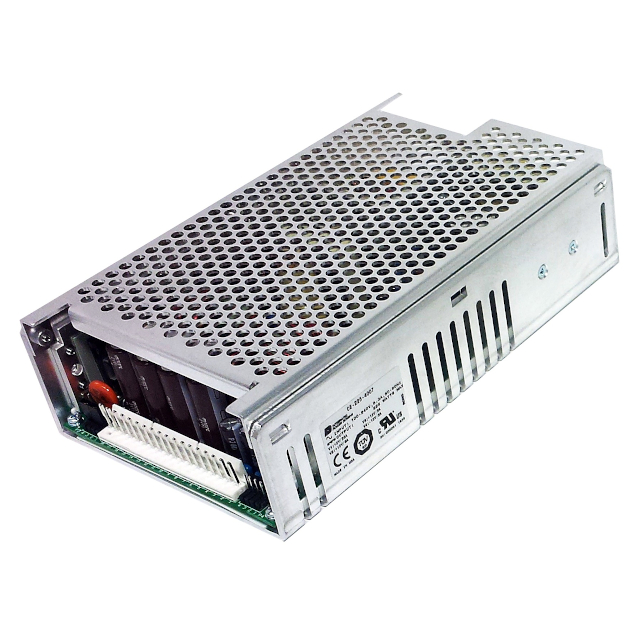

Enclosed AC DC Converters 2 Output 12V -12V 85 ~ 264 VAC Input
