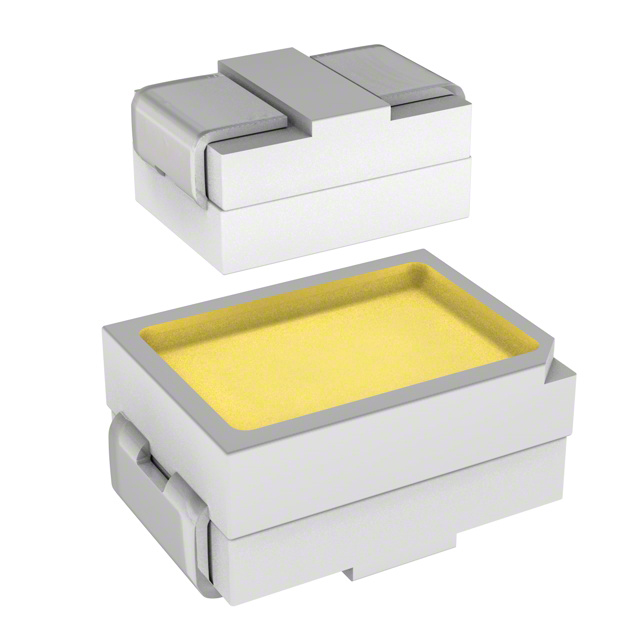

45-21/KK2C-S30308BACB41/2T
ObsoleteEverlight Electronics Co Ltd
LED WARM WHITE DIFF 2PLCC SMD
45-21/KK2C-S30308BACB41/2T
ObsoleteEverlight Electronics Co Ltd
LED WARM WHITE DIFF 2PLCC SMD
Description
General part information
45-21/KK2C-S30308BACB41/2T
White, Warm 3000K LED Indication - Discrete 3.15V 2-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 45-21/KK2C-S30308BACB41/2T |
|---|---|
| Color | White, Warm |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 1.3 mm |
| Lens Color | Yellow |
| Lens Style | Rectangle, Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1800 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Package Name | 2-PLCC |
| Size / Dimension Length | 2.7 mm |
| Size / Dimension Width | 2 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.15 V |
| Wavelength - Dominant (Color Temperature) | 3000 K |
