ERF5-005-07.0-L-DV-FL-TR

Active

Samtec Inc.

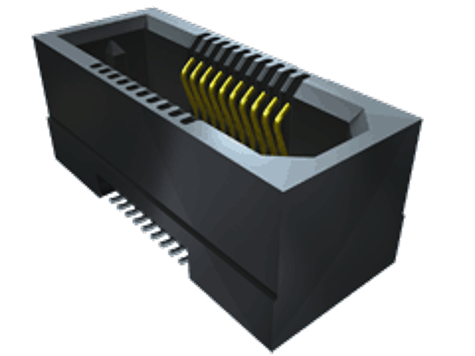

CONN HIGH SPEED SOCKET STRIP SKT 10 POS 0.5MM SOLDER ST TOP ENTRY SMD EDGE RATE® T/R

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HIGH SPEED SOCKET STRIP SKT 10 POS 0.5MM SOLDER ST TOP ENTRY SMD EDGE RATE® T/R

Technical Specifications

Parameters and characteristics for this part

Specification	ERF5-005-07.0-L-DV-FL-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Lock, Solder Retention
Height Above Board [z]	6.9 mm
Height Above Board [z]	0.272 in
Mated Stacking Heights	11 mm, 12 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Board to Board & Mezzanine Connectors 0.50 mm Edge Rate Rugged High Speed Socket

Part	Features	Number of Rows	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Mounting Type
Samtec Inc. ERF5-005-05.0-S-DV-K-TR	Board Guide Pick and Place	2	Gold	10	0.5 mm	0.02 in	0.76 Ám	30 Áin	Socket Center Strip Contacts	7 mm 9 mm 10 mm	4.9 mm	0.193 in	Surface Mount
Samtec Inc. ERF5-005-07.0-L-DV-FL-TR	Board Lock Solder Retention	2	Gold	10	0.5 mm	0.02 in	0.25 Ám	10 Áin	Socket Center Strip Contacts	9 mm 11 mm 12 mm	6.9 mm	0.272 in	Surface Mount
Samtec Inc. ERF5-020-07.0-L-DV-WT-TR	Board Guide Solder Retention	2	Gold	40	0.5 mm	0.02 in	0.25 Ám	10 Áin	Socket Center Strip Contacts	9 mm 11 mm 12 mm	6.9 mm	0.272 in	Surface Mount
Samtec Inc. ERF5-005-07.0-L-DV-K-TR	Board Guide Pick and Place	2	Gold	10	0.5 mm	0.02 in	0.25 Ám	10 Áin	Socket Center Strip Contacts	9 mm 11 mm 12 mm	6.9 mm	0.272 in	Surface Mount
Samtec Inc. ERF5-030-05.0-L-DV-TR	Board Guide	2	Gold	60	0.5 mm	0.02 in	0.25 Ám	10 Áin	Socket Center Strip Contacts	7 mm 9 mm 10 mm	4.9 mm	0.193 in	Surface Mount
Samtec Inc. ERF5-005-05.0-L-DV-K-TR	Board Guide Pick and Place	2	Gold	10	0.5 mm	0.02 in	0.25 Ám	10 Áin	Socket Center Strip Contacts	7 mm 9 mm 10 mm	4.9 mm	0.193 in	Surface Mount
Samtec Inc. ERF5-005-07.0-L-DV-TR	Board Guide	2	Gold	10	0.5 mm	0.02 in	0.25 Ám	10 Áin	Socket Center Strip Contacts	9 mm 11 mm 12 mm	6.9 mm	0.272 in	Surface Mount
