10120-5212PC

Active

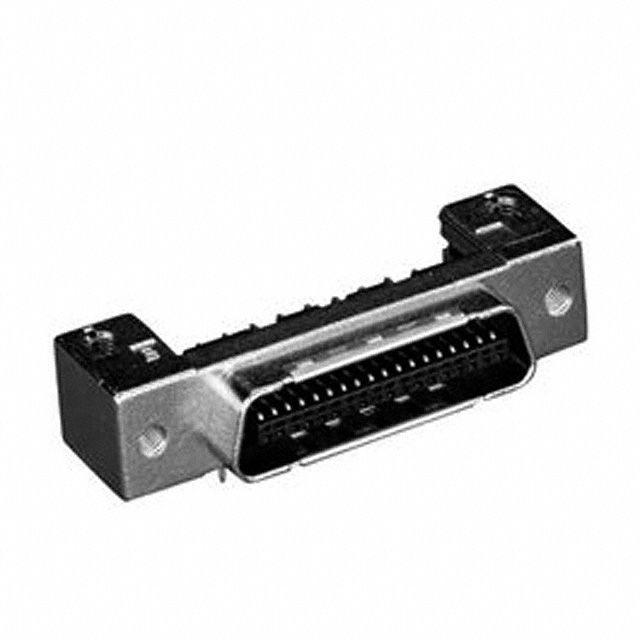

CONN MINI D RIBBON PL 20 POS 2.54MM SOLDER RA THRU-HOLE 20 TERMINAL 1 PORT BOX

Search across all available documentation for this part.

Active

CONN MINI D RIBBON PL 20 POS 2.54MM SOLDER RA THRU-HOLE 20 TERMINAL 1 PORT BOX

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10120-5212PC	10120 Series

Connector Style	-	Center Strip Contacts
Connector Type	-	Plug
Contact Finish	-	Gold
Contact Finish Thickness	-	0.51 - 0.76 µm
Contact Finish Thickness	-	20 - 30 µin
Features	-	Shielded, Board Lock
Flange Feature	-	Housing/Shell, M2.5
Flange Feature	-	2.6 M
Mounting Type	-	Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount
null		-
Number of Positions	-	20
Number of Rows	-	2
Termination	-	Solder
Type	-	Board to Board

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

JE150344982 10120-52B2PC=20/MDR/RC/RA/PLUG/GRNDLK/30MIN

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Connector Type	Number of Rows	Connector Style	Mounting Type	Number of Positions	Termination	Flange Feature	Flange Feature	Type
3M 10120-52B2PC
3M 10120-3000PE	0.51 µm	20 µin	Shielded	Gold	Plug	2	Center Strip Contacts	Free Hanging (In-Line)	20
3M 10120-5212PC
3M 10120-5212PC
3M 10120-52B2PC	0.76 Ám	30 Áin	Board Lock, Shielded	Gold	Plug	2	Center Strip Contacts	Panel Mount, Right Angle, Through Hole	20	Solder	Housing/Shell	2.6 M
3M 10120-5212PC	0.76 Ám	30 Áin	Shielded	Gold	Plug	2	Center Strip Contacts	Panel Mount, Right Angle, Through Hole	20	Solder	M2.5		Board to Board
3M 10120-3000PE
3M 10120-3000VE	0.51 µm	20 µin	Shielded	Gold	Plug	2	Center Strip Contacts	Free Hanging (In-Line)	20
3M 10120-72B2VC	0.76 Ám	30 Áin	Board Lock, Shielded	Gold	Plug	2	Center Strip Contacts	Panel Mount, Right Angle, Through Hole	20	Solder	Housing/Shell	2.6 M	Board to Board
3M 10120-52B2VC	0.76 Ám	30 Áin	Board Lock, Shielded	Gold	Plug	2	Center Strip Contacts	Panel Mount, Right Angle, Through Hole	20	Solder	Housing/Shell	2.6 M	Board to Board

General part information

20 Position Plug Connector Board to Board Panel Mount, Through Hole, Right Angle Solder
