CT2850
ObsoleteCal Test Electronics
OSCOPE P X1/X10/REF 250MHZ 1/10M
CT2850
ObsoleteCal Test Electronics
OSCOPE P X1/X10/REF 250MHZ 1/10M
Description
General part information
CT2850

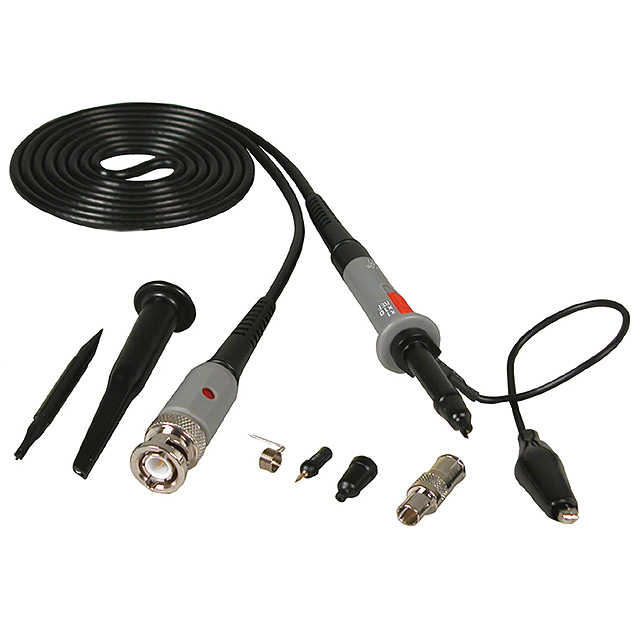

1:1, 10:1, Ref Passive 250MHz 47.244" (1200.00mm) Black and Gray Oscilloscope Probe Test Lead 1M, 10M Input Resistance CAT II 300V
Technical Specifications
Parameters and characteristics for this part
| Specification | CT2850 |
|---|---|
| Attenuation Value | 10:1, 1:1, Ref |
| Bandwidth | 250 MHz |
| Cable Length | 47.244 in |
| Capacitance - Input (Option 1) | 90 pF |
| Capacitance - Input (Option 2) | 14 pF |
| Color | Black, Gray, Black and Gray |
| Includes | Trimmer Tool, Rings, Insulating Tip, Ground Lead, BNC Adapter, Sprung Hook |
| Resistance - Input (Value 1) | 1 MOhm |
| Resistance - Input (Value 2) | 10 MOhm |
| Type | Passive |
| Voltage - Max (CAT II) | 300 V |
| Voltage - Max Category | CAT II |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
