770834-4
ActiveTE Connectivity AMP Connectors

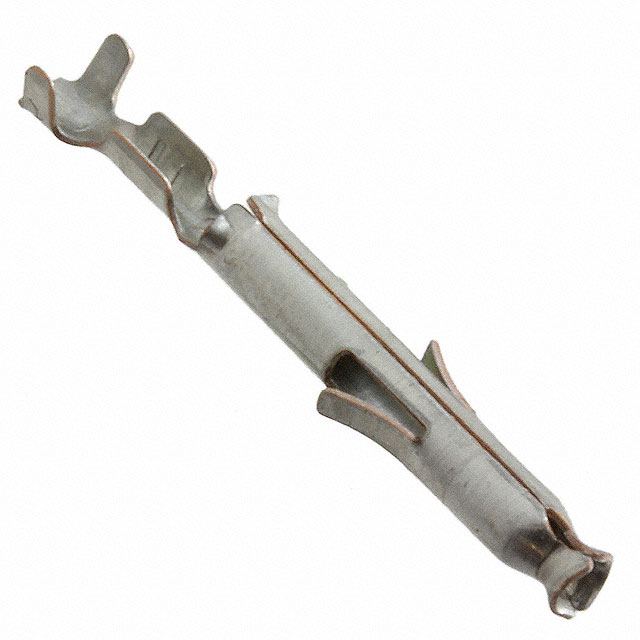

CONN SOCKET 26-30AWG TIN CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 770834-4 | 770834 Series |
|---|---|---|
| Contact Finish | Tin | Gold, Tin |
| Contact Finish Thickness | - | 0.76 Ám |
| Contact Finish Thickness | - | 30 Áin |
| Contact Material | Phosphor Bronze | Phosphor Bronze, Brass |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 26 AWG | 26 AWG |
770834 Series
CONN SOCKET 26-30AWG GOLD CRIMP
| Part | Pin or Socket | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-770834-1 | Socket | Gold | 26 AWG | 30 AWG | 0.76 Ám | 30 Áin | Crimp | Stamped | Phosphor Bronze |
TE Connectivity AMP Connectors 770834-4 | Socket | Tin | 26 AWG | 30 AWG | Crimp | Stamped | Phosphor Bronze | ||
TE Connectivity AMP Connectors 1-770834-0 | Socket | Gold | 26 AWG | 30 AWG | 0.76 Ám | 30 Áin | Crimp | Stamped | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 40000 | $ 0.05 | |
Description
General part information
770834 Series
Socket Contact Tin Crimp 26-30 AWG Stamped
