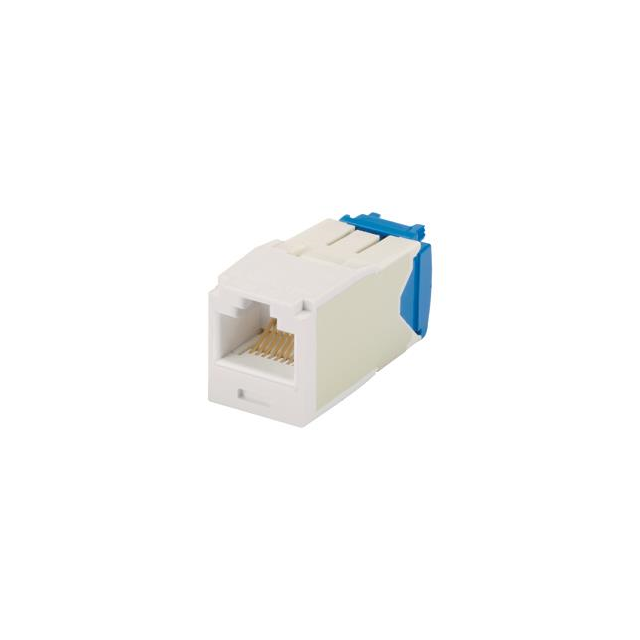

Specification	CJ6X88TGEI-C

Connector Type	Jack, Ethernet, RJ45
Contact Material	Phosphor Bronze
Housing Material	PC, Polycarbonate
LED Color	Does Not Contain LED
Mounting Type	Panel Mount
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Rows	1
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-10 °C
Orientation	Straight
Ratings	Cat6a
Shielding	Unshielded
Tab Direction	Up
Termination	IDC

CJ6X88 Series

Part	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Contact Material	Number of Rows	Mounting Type	Number of Positions	Number of Contacts	Orientation	Tab Direction	LED Color	Ratings	Termination	Shielding	Number of Ports
Panduit Corp CJ6X88TGRD-C	PC Polycarbonate	-10 °C	75 °C	Ethernet Jack RJ45	Phosphor Bronze	1	Panel Mount	8	8	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGYL	PC Polycarbonate	-10 °C	75 °C	Ethernet Jack RJ45	Phosphor Bronze	1	Panel Mount	8	8	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGGR-C	PC Polycarbonate	-10 °C	75 °C	Ethernet Jack RJ45	Phosphor Bronze	1	Panel Mount	8	8	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGWH	PC Polycarbonate	-10 °C	75 °C	Ethernet Jack RJ45	Phosphor Bronze	1	Panel Mount	8	8	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGRD-24	PC Polycarbonate	-10 °C	75 °C	Ethernet Jack RJ45	Phosphor Bronze	1	Panel Mount	8	8	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGOR-24	PC Polycarbonate	-10 °C	75 °C	Ethernet Jack RJ45	Phosphor Bronze	1	Panel Mount	8	8	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGGR-24	PC Polycarbonate	-10 °C	75 °C	Ethernet Jack RJ45	Phosphor Bronze	1	Panel Mount	8	8	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGEI	ABS Acrylonitrile Butadiene Styrene	-10 °C	65 °C	Ethernet Jack RJ45	Phosphor Bronze	1	Panel Mount	8	8	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGWH-24	PC Polycarbonate	-10 °C	75 °C	Ethernet Jack RJ45	Phosphor Bronze	1	Panel Mount	8	8	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGBU-24	PC Polycarbonate	-10 °C	75 °C	Ethernet Jack RJ45	Phosphor Bronze	1	Panel Mount	8	8	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
