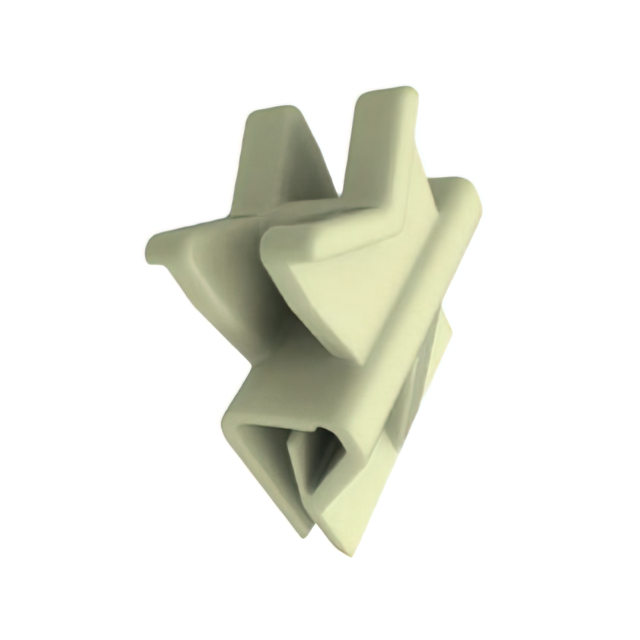

ALBCBS3105901
ActiveAmphenol Air LB
CABLE SUPPORT (90)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ALBCBS3105901
ActiveAmphenol Air LB
CABLE SUPPORT (90)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ALBCBS3105901 | ALBCBS310 Series |
|---|---|---|
| Color | White | White |
| Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Opening Size [Max] | 0.59 in | 0.59 in |
| Opening Size [Max] | 14.99 mm | 14.99 mm |
| Opening Size [Min] | 2.03 mm | 2.03 mm |
| Opening Size [Min] | 0.08 in | 0.08 in |
| Type | C-Type, Clip | C-Type, Clip |
ALBCBS310 Series
CABLE SUPPORT (90)
| Part | Type | Color | Material | Opening Size [Min] | Opening Size [Min] | Opening Size [Max] | Opening Size [Max] |
|---|---|---|---|---|---|---|---|
Amphenol Air LB ALBCBS3105901 | C-Type, Clip | White | Polyamide (PA), Nylon | 2.03 mm | 0.08 in | 0.59 in | 14.99 mm |
Amphenol Air LB ALBCBS3105902 | C-Type, Clip | White | Polyamide (PA), Nylon | 2.03 mm | 0.08 in | 0.59 in | 14.99 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 6.50 | |
| 10 | $ 4.98 | |||
| 25 | $ 4.49 | |||
| 50 | $ 4.16 | |||
| 100 | $ 3.86 | |||
| 250 | $ 3.51 | |||
| 500 | $ 3.27 | |||
| 1000 | $ 3.05 | |||
| 2500 | $ 2.80 | |||
Description
General part information
ALBCBS310 Series
Cable Clip, C-Type White 0.080" ~ 0.590" (2.03mm ~ 14.99mm)
