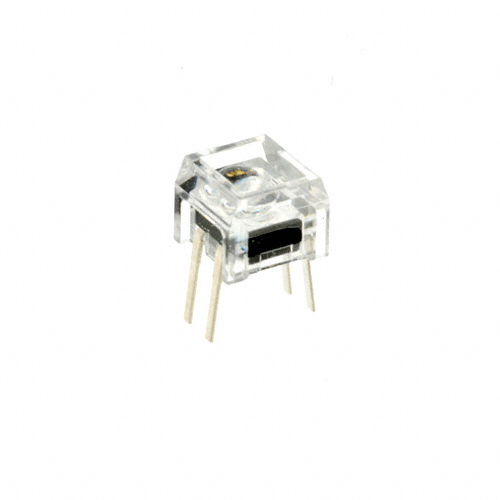

CNB1301
ObsoletePanasonic Electronic Components
SENSOR OPTO TRANS 2.5MM REFL PCB
CNB1301
ObsoletePanasonic Electronic Components
SENSOR OPTO TRANS 2.5MM REFL PCB
Description
General part information
CNB1301
Reflective Optical Sensor 0.098" (2.5mm) PCB Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CNB1301 |
|---|---|
| Current - Collector (Ic) (Max) | 20 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Phototransistor |
| Package / Case | PCB Mount |
| Response Time | 20 µs |
| Sensing Distance | 0.098 " |
| Sensing Method | Reflective |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
