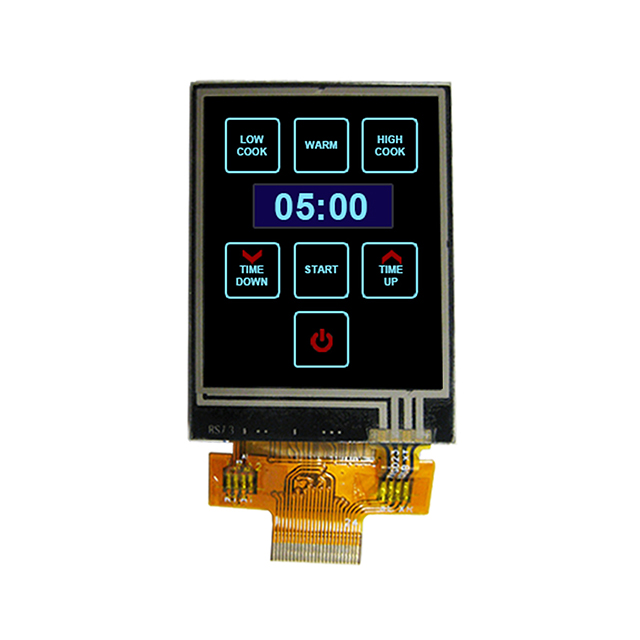

NHD-1.8-128160EF-CTXI#-FT
ActiveNewhaven Display Intl
DISPLAY LCD TFT TOUCH 8BIT
Deep-Dive with AI
Search across all available documentation for this part.
NHD-1.8-128160EF-CTXI#-FT
ActiveNewhaven Display Intl
DISPLAY LCD TFT TOUCH 8BIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-1.8-128160EF-CTXI#-FT |
|---|---|
| Backlight | LED - White |
| Controller Type | ILI9163C |
| Diagonal Screen Size [custom] | 45.72 mm |
| Diagonal Screen Size [custom] | 1.8 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels [x] | 128 |
| Dot Pixels [y] | 160 |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel, 8-Bit |
| Touchscreen | Resistive |
| Viewing Area [y] | 30.03 mm |
| Viewing Area [z] | 37.04 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 18.96 | |
| 5 | $ 17.82 | |||
| 10 | $ 17.43 | |||
Description
General part information
NHD-1.8-128160EF-CTXI#-FT
Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 8-Bit 1.8" (45.72mm) 128 x 160
