1755558

Active

Phoenix Contact

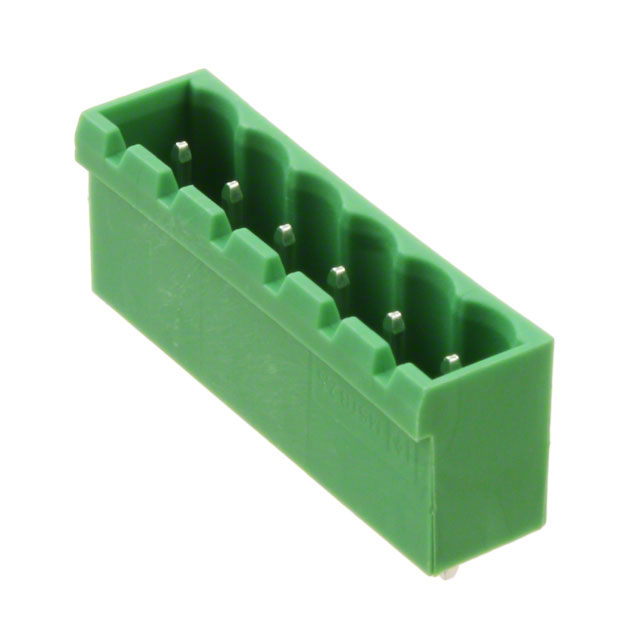

CONN SHROUDED HEADER (4 SIDES) HDR 6 POS 5MM SOLDER ST TOP ENTRY THRU-HOLE CARDBOARD

Search across all available documentation for this part.

Active

Phoenix Contact

CONN SHROUDED HEADER (4 SIDES) HDR 6 POS 5MM SOLDER ST TOP ENTRY THRU-HOLE CARDBOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1755558	MSTBVA Series

Color	Green	Green, Black
Contact Mating Finish	Tin	Tin
Contact Tail Length	0.154 "	0.154 "
Contact Tail Length	3.9 mm	3.9 mm
Current - IEC	12 A	12 A
Current - UL	12 A	12 A
Header Orientation	Vertical	Vertical
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.472 in	0.472 in
Insulation Height	12 mm	12 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	6	6 - 24
Pitch [x]	5 mm	5 - 5.08 mm
Pitch [x]	0.197 in	0.197 - 0.2 in
Positions Per Level	6	6 - 9
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	400 V	250 - 400 V
Voltage - UL	300 V	300 V

Pluggable Terminal Blocks 24 Pos 5mm pitch Through Hole Header

Part	Number of Levels	Current - UL	Mounting Type	Termination Style	Voltage - IEC	Header Orientation	Current - IEC	Material Flammability Rating	Voltage - UL	Color	Type	Housing Material	Contact Tail Length	Contact Tail Length	Pitch [x]	Pitch [x]	Contact Mating Finish	Number of Positions	Insulation Height	Insulation Height	Positions Per Level
Phoenix Contact 1755558	1	12 A	Through Hole	Solder	400 V	Vertical	12 A	UL94 V-0	300 V	Green	Header, Male Pins, Shrouded (4 Side)	Polyamide (PA), Nylon	0.154 "	3.9 mm	5 mm	0.197 in	Tin	6	0.472 in	12 mm	6
Phoenix Contact 1746787	1	12 A	Through Hole	Solder	250 V	Vertical	12 A		300 V	Black	Header, Male Pins, Shrouded (4 Side)		0.154 "	3.9 mm	5 mm	0.197 in	Tin	24	0.472 in	12 mm
Phoenix Contact 1741847	1		Through Hole	Solder	250 V	Vertical	12 A			Black	Header, Male Pins, Shrouded (4 Side)		0.154 "	3.9 mm	5.08 mm	0.2 in	Tin	9	0.472 in	12 mm	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 24 Pos 5mm pitch Through Hole Header
