EN2C6M26G3W
ActiveSwitchcraft Inc.

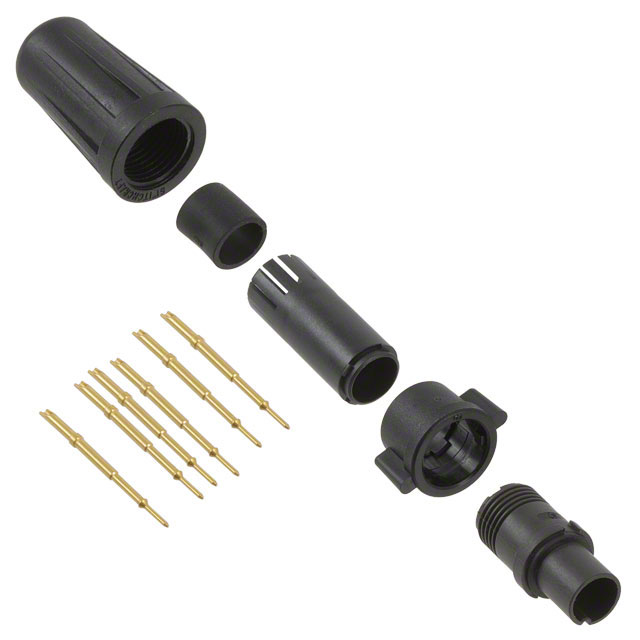

CONN PLUG MALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN2C6M26G3W
ActiveSwitchcraft Inc.
CONN PLUG MALE 6POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN2C6M26G3W | EN2C6M Series |
|---|---|---|
| Applications | Marine, Communication Systems, Medical, Industrial | Marine, Communication Systems, Medical, Industrial |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 2.54 - 3.56 mm |
| Cable Opening | - | 0.1 - 0.14 in |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 3.56 mm |
| Cable Opening | - | 0.14 in |
| Cable Opening | - | 0.18 in |
| Cable Opening [Max] [custom] | 0.22 in | 0.22 in |
| Cable Opening [Max] [custom] | 5.59 mm | 5.59 mm |
| Cable Opening [Min] [custom] | 0.18 in | 0.18 in |
| Cable Opening [Min] [custom] | 4.57 mm | 4.57 mm |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell, Winged | Coupling Nut, Backshell, Winged |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp, Solder Cup | Crimp, Solder Cup |
| Voltage Rating | 125 VAC | 125 VAC |
EN2C6M Series
CONN PLUG MALE 6POS GOLD CRIMP
| Part | Contact Finish - Mating | Backshell Material, Plating | Termination | Ingress Protection | Applications | Insert Material | Material Flammability Rating | Shielding | Connector Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Color | Number of Positions | Orientation | Mounting Type | Contact Material | Primary Material | Voltage Rating | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN2C6M26G1 | Gold | Thermoplastic | Crimp, Solder Cup | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Elastomer | UL94 V-0 | Unshielded | Male Pins, Plug | Bayonet Lock | 85 °C | -40 °C | Backshell, Coupling Nut | Black | 6 | Keyed | Free Hanging (In-Line) | Copper Alloy | Plastic | 125 VAC | 2.54 mm, 3.56 mm | 0.1 in, 0.14 in | ||||||||
Switchcraft Inc. EN2C6M26G2W | Gold | Thermoplastic | Crimp, Solder Cup | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Elastomer | UL94 V-0 | Unshielded | Male Pins, Plug | Bayonet Lock | 85 °C | -40 °C | Backshell, Coupling Nut, Winged | Black | 6 | Keyed | Free Hanging (In-Line) | Copper Alloy | Plastic | 125 VAC | 4.57 mm | 3.56 mm | 0.14 in | 0.18 in | ||||||
Switchcraft Inc. EN2C6M26DC | Gold | Thermoplastic | Crimp, Solder Cup | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Elastomer | UL94 V-0 | Unshielded | Male Pins, Plug | Bayonet Lock | 85 °C | -40 °C | Backshell, Coupling Nut | Black | 6 | Keyed | Free Hanging (In-Line) | Copper Alloy | Plastic | 125 VAC | ||||||||||
Switchcraft Inc. EN2C6M26G1W | Gold | Thermoplastic | Crimp, Solder Cup | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Elastomer | UL94 V-0 | Unshielded | Male Pins, Plug | Bayonet Lock | 85 °C | -40 °C | Backshell, Coupling Nut, Winged | Black | 6 | Keyed | Free Hanging (In-Line) | Copper Alloy | Plastic | 125 VAC | 2.54 mm, 3.56 mm | 0.1 in, 0.14 in | ||||||||
Switchcraft Inc. EN2C6M26G3W | Gold | Thermoplastic | Crimp, Solder Cup | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Elastomer | UL94 V-0 | Unshielded | Male Pins, Plug | Bayonet Lock | 85 °C | -40 °C | Backshell, Coupling Nut, Winged | Black | 6 | Keyed | Free Hanging (In-Line) | Copper Alloy | Plastic | 125 VAC | 0.18 in | 0.22 in | 4.57 mm | 5.59 mm | ||||||
Switchcraft Inc. EN2C6M26G2 | Gold | Thermoplastic | Crimp, Solder Cup | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Elastomer | UL94 V-0 | Unshielded | Male Pins, Plug | Bayonet Lock | 85 °C | -40 °C | Backshell, Coupling Nut | Black | 6 | Keyed | Free Hanging (In-Line) | Copper Alloy | Plastic | 125 VAC | 4.57 mm | 3.56 mm | 0.14 in | 0.18 in | ||||||
Switchcraft Inc. EN2C6M26G3 | Gold | Thermoplastic | Crimp, Solder Cup | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Elastomer | UL94 V-0 | Unshielded | Male Pins, Plug | Bayonet Lock | 85 °C | -40 °C | Backshell, Coupling Nut | Black | 6 | Keyed | Free Hanging (In-Line) | Copper Alloy | Plastic | 125 VAC | 0.18 in | 0.22 in | 4.57 mm | 5.59 mm |
