387-070-544-268
ActiveEDAC Inc.

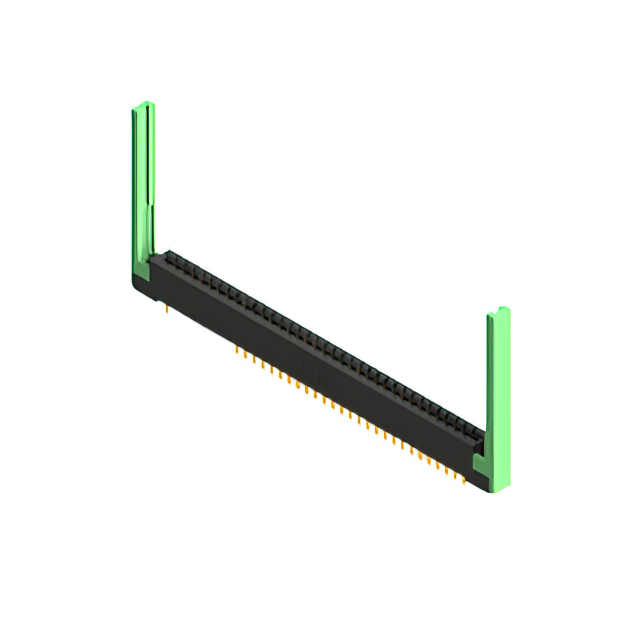

CARD EDGE CONNECTOR, 70 CONTACT(S), 2 ROW(S), FEMALE, 0.156 INCH PITCH, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-070-544-268
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 70 CONTACT(S), 2 ROW(S), FEMALE, 0.156 INCH PITCH, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-070-544-268 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 70 |
| Number of Positions/Bay/Row [custom] | 35 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
387-070 Series
...
| Part | Pitch [x] | Pitch [x] | Number of Rows | Number of Positions | Color | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Termination Rows | Read Out | Contact Type | Gender | Flange Feature | Flange Feature | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | 2 | 70 | Black | Solder | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Dual | Cantilever | Female | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | -40 °C | 105 ░C | Through Hole | 35 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | |||
EDAC Inc. | 0.156 in | 3.96 mm | 2 | 70 | Black | Solder | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Dual | Cantilever | Female | Floating Bobbin Top Mount Opening | -40 °C | 105 ░C | Through Hole | 35 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | 2.95 mm | 0.116 in | |||
EDAC Inc. | 0.156 in | 3.96 mm | 2 | 70 | Black | Solder | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Dual | Cantilever | Female | Floating Bobbin Flush Mount | -40 °C | 105 ░C | Board Edge Straddle Mount | 35 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | 2.95 mm | 0.116 in | Card Extender | ||
EDAC Inc. | 0.156 in | 3.96 mm | 2 | 70 | Black | Solder | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Dual | Cantilever | Female | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Through Hole | 35 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |||
EDAC Inc. | 0.156 in | 3.96 mm | 2 | 70 | Black | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Dual | Cantilever | Female | Floating Bobbin Top Mount Opening | -40 °C | 105 ░C | Through Hole | 35 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | 2.95 mm | 0.116 in | |||
EDAC Inc. | 0.156 in | 3.96 mm | 2 | 70 | Black | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Dual | Cantilever | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Through Hole | 35 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | |||||
EDAC Inc. | 0.156 in | 3.96 mm | 2 | 70 | Black | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Dual | Cantilever | Female | Top Mount Opening Unthreaded | -40 °C | 105 ░C | Board Edge Straddle Mount | 35 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Card Extender | ||
EDAC Inc. | 0.156 in | 3.96 mm | 2 | 70 | Black | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Dual | Cantilever | Female | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Through Hole | 35 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | |||||
EDAC Inc. | 0.156 in | 3.96 mm | 2 | 70 | Black | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Dual | Cantilever | Female | 3.25 mm | 0.128 in | -40 °C | 105 ░C | Through Hole Right Angle | 35 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 2 | 70 | Black | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Dual | Cantilever | Female | M3 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Through Hole | 35 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-070 Series
70 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
