YO0921500000G

Active

AMPHENOL ANYTEK

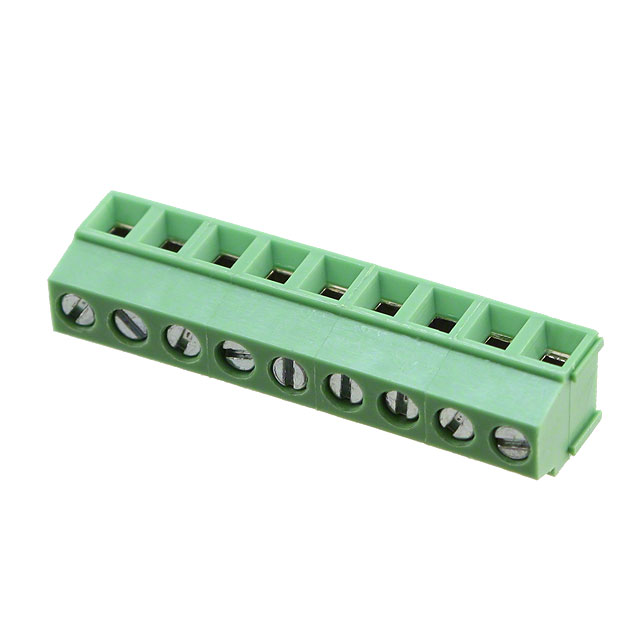

TERM BLK 9P SIDE ENT 3.81MM PCB

Search across all available documentation for this part.

Active

AMPHENOL ANYTEK

TERM BLK 9P SIDE ENT 3.81MM PCB

Technical Specifications

Parameters and characteristics for this part

TERM BLK 9P SIDE ENT 3.81MM PCB

Part	Clamp Material - Plating	Current	Mounting Type	Pitch [x]	Pitch [x]	Wire Termination	Mating Orientation	Number of Levels	Features	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Min]	Wire Gauge [Max]	Torque - Screw	Torque - Screw	Positions Per Level	Color	Screw Material - Plating	Housing Material	Contact Material - Plating	Screw Thread	Voltage
AMPHENOL ANYTEK YO0921500000G	Copper Alloy - Nickel Plated	10 A	Through Hole	0.15 in	3.81 mm	Screw - Rising Cage Clamp	Horizontal with Board	1	Interlocking (Side)	-40 °C	115 °C	16 AWG	24 AWG	0.2 Nm	1.7 Lb-In	9	Green	Steel, Zinc Plated	Thermoplastic	Copper Alloy - Tin Plated	M2	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
