TXR40AB90-1004AI

Active

TE Connectivity Aerospace, Defense and Marine

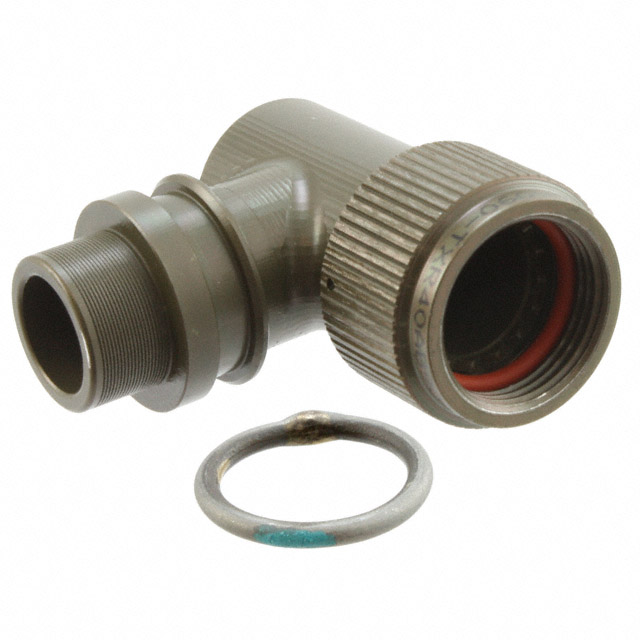

CONN BACKSHELL ADPT SZ11 B M15

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTinel-Lock Adapters Spec Datasheet

TXR40AB90-1004AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ11 B M15

Deep-Dive with AI

DocumentsTinel-Lock Adapters Spec Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 215.98

Description

General part information

TXR40AB90 Series

Olive Drab Connector Backshell, Heat Shrink Adapter M15x1 11, B

Documents

Technical documentation and resources

Tinel-Lock Adapters Spec

Datasheet

Specification	TXR40AB90-1004AI	TXR40AB90 Series

Cable Exit	90 °	90 °
Color	Olive Drab	Olive Drab
Diameter - Outside	-	29 mm
Diameter - Outside [diameter]	0.827 in	0.709 - 1.713 "
Diameter - Outside [diameter]	21 mm	1.142 - 43.5 in
Features	Tinel Lock	Tinel Lock
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs	1 pcs
Includes	-	1 Braid, 2 O-Rings, 2 pc Backshell, 1 Tinel Ring
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium	Cadmium
Shell Size - Insert	B	D, G, J, F, B, 17, E, H, C
Shell Size - Insert	11	11 - 25
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Shielded	Shielded
Thread Size	M15x1	M31x1, M37x1, M28x1, M15x1, M25x1, M12x1, M34x1, M18x1
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

Part	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	For Use With/Related Products	Includes	Shell Size - Insert	Shell Size - Insert	Material	Shielding	Color	Cable Exit	Features	Type	Ingress Protection	Diameter - Outside [diameter]	Thread Size	Includes
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1408AI	Cadmium	1.142 in	29 mm	MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	15	D	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant
TE Connectivity Aerospace, Defense and Marine TXR40AB90-2007BI	Cadmium	37 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	21	G	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.457 "	M31x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-2412AI	Cadmium	43.5 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	25	J	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.713 "	M37x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1808AI	Cadmium	35.5 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	19	F	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.398 in	M28x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1006AI	Cadmium	21 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	11	B	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	0.827 in	M15x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-2008BI	Cadmium	37 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	21	G	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.457 "	M31x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1407BI-CS2261	Cadmium	1.142 in	29 mm	MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	15	D	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1610AI	Cadmium	32.49 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs		17, E	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.279 in	M25x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-2410AI	Cadmium	43.5 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	25	J	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.713 "	M37x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1818BI	Cadmium	35.5 mm		MIL-DTL-38999 Series III, IV		19	F	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.398 in	M28x1	1 Braid, 1 Tinel Ring, 2 O-Rings, 2 pc Backshell
