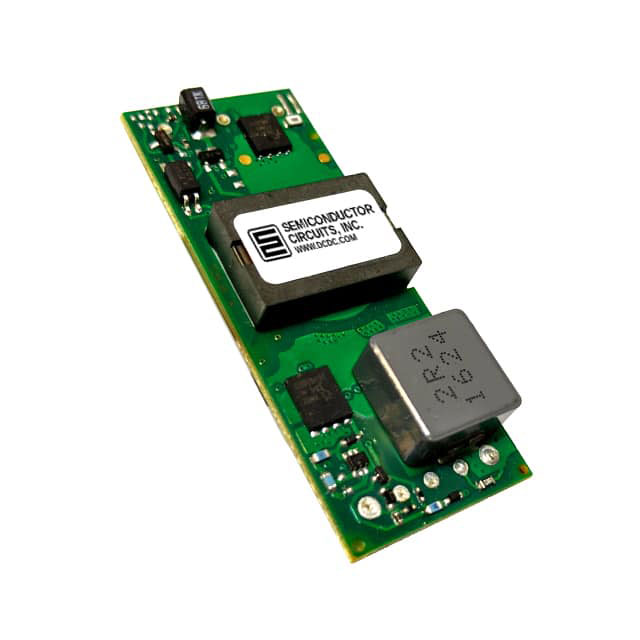

CPE14B48P

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 12V 168W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CPE14B48P

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 12V 168W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CPE14B48P

Applications	ITE (Commercial)
Approval Agency	CSA, TUV, UL
Control Features	Active High, Enable
Current - Output (Max) [Max]	14 A
Efficiency	94 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Eighth Brick
Power (Watts)	168 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	11.8 mm
Size / Dimension [z]	0.46 in
Supplier Device Package	Eighth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

CPE14B48 Series

Part	Number of Outputs	Power (Watts)	Approval Agency	Applications	Mounting Type	Features	Type	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Voltage - Input (Min) [Min]	Voltage - Output 1	Efficiency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]
Semiconductor Circuits, Inc. CPE14B48NB	1	168 W	CSA TUV UL	ITE (Commercial)	Through Hole	Adjustable Output Baseplate Remote On/Off Remote Sense	Isolated Module	2250 VDC	22.9 mm	58.4 mm	12.7 mm	0.5 in	2.3 in	0.9 "	Eighth Brick	36 V	12 V	94 %	Eighth Brick	85 °C	-40 °C	Active Low Enable	75 V	14 A
Semiconductor Circuits, Inc. CPE14B48N	1	168 W	CSA TUV UL	ITE (Commercial)	Through Hole	Adjustable Output Remote On/Off Remote Sense	Isolated Module	2250 VDC	22.9 mm	58.4 mm	11.8 mm	0.46 in	2.3 in	0.9 "	Eighth Brick	36 V	12 V	94 %	Eighth Brick	85 °C	-40 °C	Active Low Enable	75 V	14 A
Semiconductor Circuits, Inc. CPE14B48PB	1	168 W	CSA TUV UL	ITE (Commercial)	Through Hole	Adjustable Output Baseplate Remote On/Off Remote Sense	Isolated Module	2250 VDC	22.9 mm	58.4 mm	12.7 mm	0.5 in	2.3 in	0.9 "	Eighth Brick	36 V	12 V	94 %	Eighth Brick	85 °C	-40 °C	Active High Enable	75 V	14 A
Semiconductor Circuits, Inc. CPE14B48P	1	168 W	CSA TUV UL	ITE (Commercial)	Through Hole	Adjustable Output Remote On/Off Remote Sense	Isolated Module	2250 VDC	22.9 mm	58.4 mm	11.8 mm	0.46 in	2.3 in	0.9 "	Eighth Brick	36 V	12 V	94 %	Eighth Brick	85 °C	-40 °C	Active High Enable	75 V	14 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 41.57
		5	$ 41.15
		10	$ 40.74
		25	$ 39.52

Description

General part information

CPE14B48 Series

Isolated Module DC DC Converter 1 Output 12V 14A 36V - 75V Input
