5-1376492-6
ActiveTE Connectivity AMP Connectors

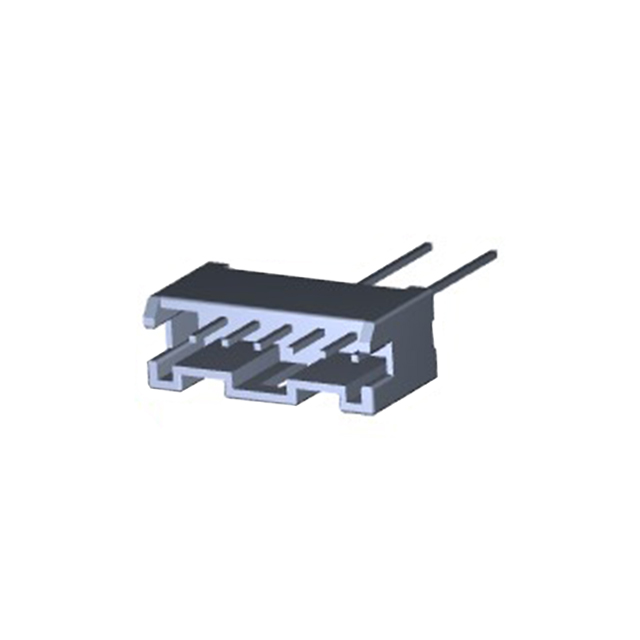

CONN HEADER VERT 6POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-1376492-6
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 6POS 2.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-1376492-6 | 1376492 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Post | Tin | Tin |
| Contact Length - Post | - | 0.11 in |
| Contact Length - Post | - | 2.79 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Current Rating (Amps) | - | 2.5 A |
| Fastening Type | Latch Holder | Latch Holder |
| Insulation Color | Natural | Natural, Red |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 6 | 2 - 7 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch - Mating | 2.5 mm | 2.5 mm |
| Pitch - Mating | 0.098 in | 0.098 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 50 V | 50 V |
1376492 Series
CONN HEADER VERT 6POS 2.5MM
| Part | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Insulation Material | Pitch - Mating | Pitch - Mating | Applications | Contact Shape | Number of Rows | Shrouding | Contact Material | Connector Type | Style | Termination | Contact Type | Fastening Type | Insulation Color | Material Flammability Rating | Number of Positions Loaded | Current Rating (Amps) | Contact Finish - Post | Voltage Rating | Contact Length - Post [x] | Contact Length - Post | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-1376492-6 | 6 | -30 ░C | 105 ░C | Through Hole | Polyamide (PA66), Nylon 6/6, Glass Filled | 2.5 mm | 0.098 in | General Purpose | Square | 1 | Shrouded - 4 Wall | Brass | Header | Board to Cable/Wire | Solder | Male Pin | Latch Holder | Natural | UL94 V-0 | All | Varies by Wire Gauge | Tin | 50 V | |||
TE Connectivity AMP Connectors 6-1376492-3 | -30 ░C | 105 ░C | Through Hole | Polyamide (PA66), Nylon 6/6, Glass Filled | 2.5 mm | 0.098 in | Square | 1 | Shrouded - 4 Wall | Brass | Header | Board to Cable/Wire | Solder | Male Pin | Latch Holder | Red | All | Tin | 50 VAC | 0.11 in | 2.79 mm | 2.5 A | ||||
TE Connectivity AMP Connectors 5-1376492-2 | 2 | -30 ░C | 105 ░C | Through Hole | Polyamide (PA66), Nylon 6/6, Glass Filled | 2.5 mm | 0.098 in | General Purpose | Square | 1 | Shrouded - 4 Wall | Brass | Header | Board to Cable/Wire | Solder | Male Pin | Latch Holder | Natural | UL94 V-0 | All | Varies by Wire Gauge | Tin | 50 V | |||
TE Connectivity AMP Connectors 5-1376492-7 | 7 | -30 ░C | 105 ░C | Through Hole | Polyamide (PA66), Nylon 6/6, Glass Filled | 2.5 mm | 0.098 in | General Purpose | Square | 1 | Shrouded - 4 Wall | Brass | Header | Board to Cable/Wire | Solder | Male Pin | Latch Holder | Natural | UL94 V-0 | All | Varies by Wire Gauge | Tin | 50 V | |||
TE Connectivity AMP Connectors 5-1376492-3 | -30 ░C | 105 ░C | Through Hole | Polyamide (PA66), Nylon 6/6, Glass Filled | 2.5 mm | 0.098 in | General Purpose | Square | 1 | Shrouded - 4 Wall | Brass | Header | Board to Cable/Wire | Solder | Male Pin | Latch Holder | Natural | UL94 V-0 | All | Varies by Wire Gauge | Tin | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 18000 | $ 0.63 | |
Description
General part information
1376492 Series
Connector Header Through Hole 6 position 0.098" (2.50mm)
