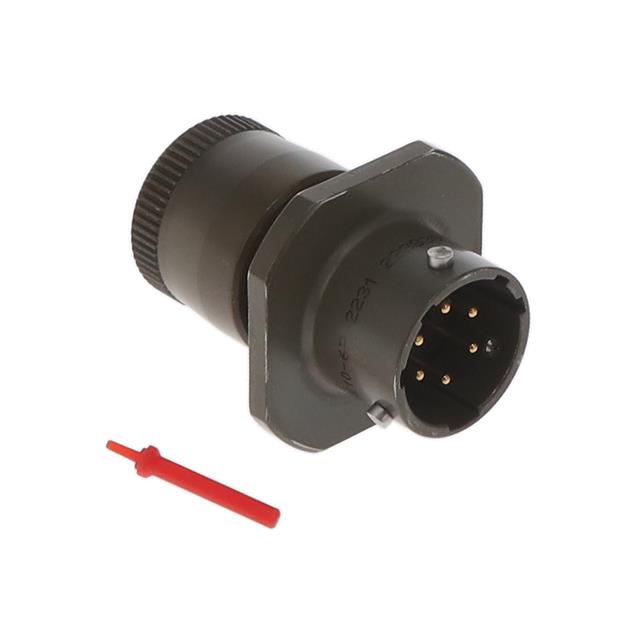

MS3111E10-6P
ActiveAmphenol Industrial Operations
CONN RCPT MALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3111E10-6P
ActiveAmphenol Industrial Operations
CONN RCPT MALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3111E10-6P | MS3111E10 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 10-6 | 10-6 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.29 | |
| 1 | $ 11.68 | |||
MS3111E10 Series
RECEPT
| Part | Shell Material | Grade | Shell Finish | Insert Material | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Mounting Type | Shell Size - Insert | Shielding | Qualification | Number of Positions | Features | Fastening Type | Contact Material | Applications | Orientation | Connector Type | Color | Contact Finish - Mating | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3111E10-6S | ||||||||||||||||||||||
Amphenol Industrial Operations MS3111E10-98P | ||||||||||||||||||||||
Amphenol Industrial Operations MS3111E10-6P | Aluminum | Military | Olive Drab Chromate over Cadmium | Neoprene | Environment Resistant | -55 °C | 125 °C | Metal | Free Hanging (In-Line) | 10-6 | Unshielded | MIL-DTL-26482 Series I | 6 | Backshell | Bayonet Lock | Copper Alloy | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | N | Male Pins, Receptacle | Olive Drab | Gold | Aluminum, Olive Drab Chromate over Cadmium |
Description
General part information
MS3111E10 Series
6 Position Circular Connector Receptacle, Male Pins Solder Cup
