VMEE-M
ActiveEXTENDER CARD, VME, 6 LAYER CONSTRUCTION, 200RMS, 298MM
VMEE-M
ActiveEXTENDER CARD, VME, 6 LAYER CONSTRUCTION, 200RMS, 298MM
Description
General part information

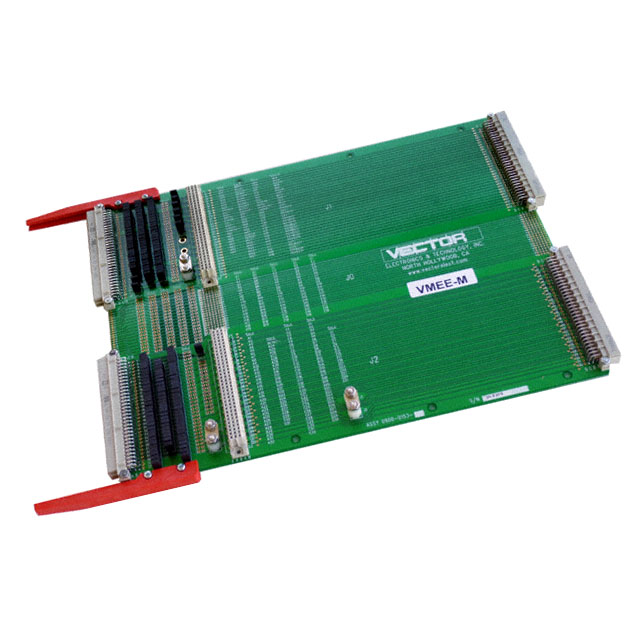

VMEE-M
The VMEE-M is a DIN Metric Extender Card designed to bring a circuit card completely out of a card cage or enclosure so that it can be tested or debugged. This provides access to both sides of the test board. The VME64J1 extender on top and VME64J2 extender on bottom attached with mending plate to create VMEE-M extender.
Technical Specifications
Parameters and characteristics for this part
| Specification | VMEE-M |
|---|---|
| Contacts | 96 Pins |
| Material | FR4 Epoxy Glass |
| Size / Dimension Length | 11.75 in |
| Size / Dimension Width | 9.187 in |
| Type | VME |
