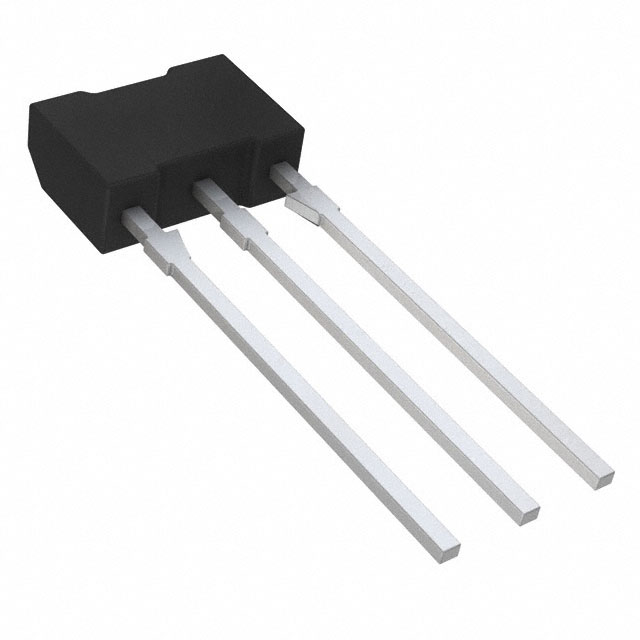

2SA1708S-AN

Active

Sanyo

TRANS PNP 100V 1A 3NMP

Search across all available documentation for this part.

Active

Sanyo

TRANS PNP 100V 1A 3NMP

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1708S-AN

Current - Collector (Ic) (Max) [Max]	1 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100 hFE
Frequency - Transition	120 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	SC-71
Power - Max [Max]	1 W
Supplier Device Package	3-NMP
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	600 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	100 V

TRANS PNP 100V 1A 3NMP

Part	Operating Temperature	Transistor Type	Package / Case	Power - Max [Max]	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]
Sanyo 2SA1708S-AN	150 °C	PNP	SC-71	1 W	120 MHz	1 A	100 nA	600 mV	Through Hole	100 hFE	3-NMP	100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1402	$ 0.21

General part information

Bipolar (BJT) Transistor PNP 100 V 1 A 120MHz 1 W Through Hole 3-NMP

Technical documentation and resources

No documents available
