CLF12555T-150M-CA
ObsoleteTDK Corporation
FIXED IND 15UH 3.2A 37.2MOHM SMD
CLF12555T-150M-CA
ObsoleteTDK Corporation
FIXED IND 15UH 3.2A 37.2MOHM SMD
Description
General part information
CLF12555T-150M-CA

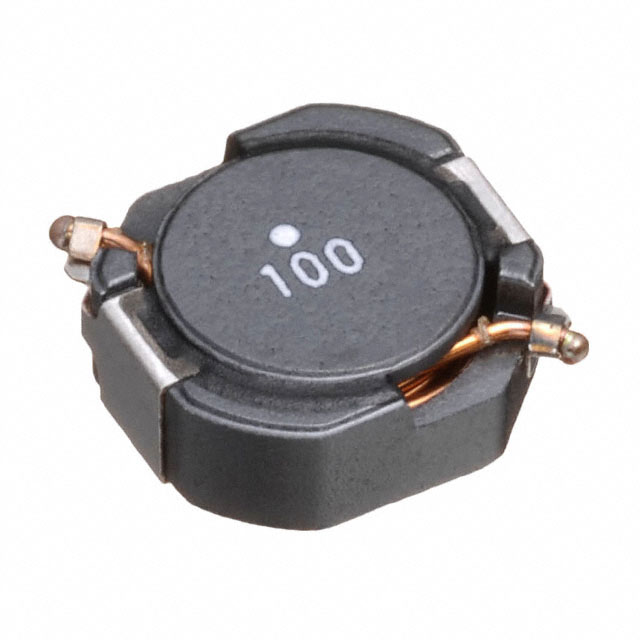

15 µH Shielded Drum Core, Wirewound Inductor 3.2 A 37.2mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CLF12555T-150M-CA |
|---|---|
| Current - Saturation (Isat) | 5.4 A |
| Current Rating | 3.2 A |
| DC Resistance (DCR) (Max) | 37.2 mOhm |
| Height - Seated (Max) | 0.23 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.476 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
