LYT4318L
ObsoletePower Integrations
IC OFFLINE SW MULT TOP 7FESIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LYT4318L
ObsoletePower Integrations
IC OFFLINE SW MULT TOP 7FESIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LYT4318L |
|---|---|
| Duty Cycle | 99.9 % |
| Frequency - Switching | 140 kHz |
| Internal Switch(s) | True |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Isolation | Isolated |

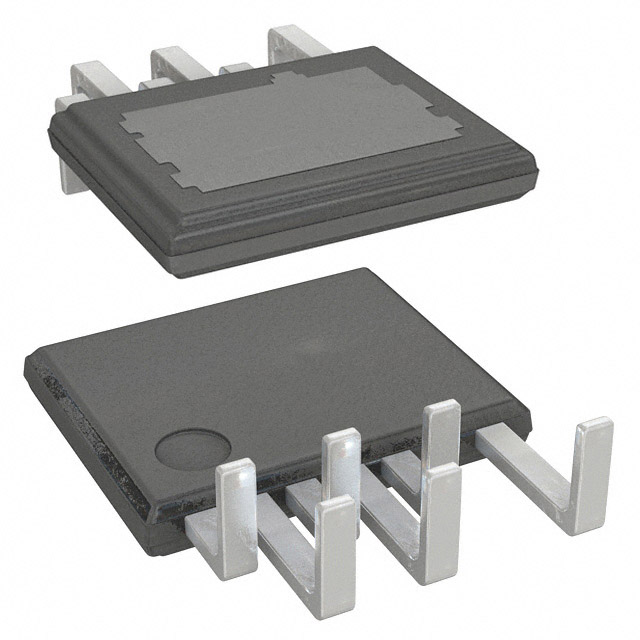

| Package / Case | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads |
| Power (Watts) | 78 W |
| Supplier Device Package | eSIP-7F |
| Topology | Step-Down (Buck), Step-Up (Boost), Flyback |
| Voltage - Breakdown | 725 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LYT4318L
Converter Offline Flyback, Step-Down (Buck), Step-Up (Boost) Topology 140kHz eSIP-7F
