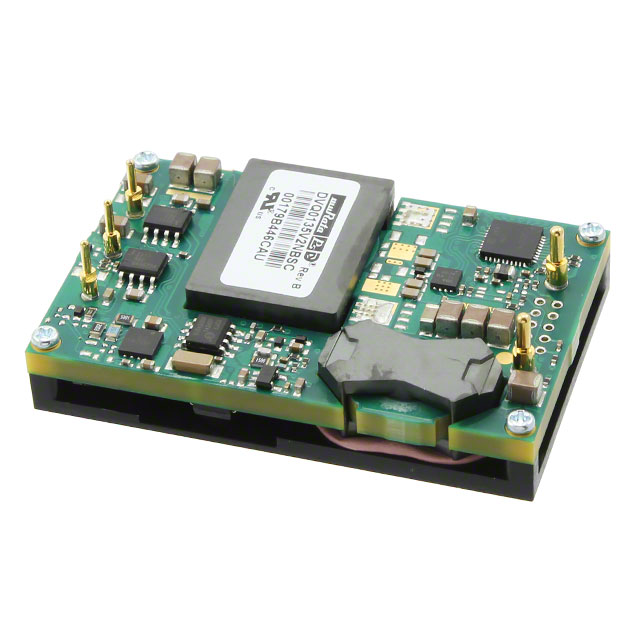

DVQ0135V2NC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12V 420W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12V 420W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DVQ0135V2NC	DVQ0135V2 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	35 A	35 A
Efficiency	92.5 %	92.5 - 95.2 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	16-DIP Module (15 Leads), 1/4 Brick	16-DIP Module (15 Leads), 1/4 Brick
Power (Watts)	420 W	420 W
Size / Dimension [x]	2.3 in	2.3 in
Size / Dimension [x]	58.4 mm	58.4 mm
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [z]	12.2 mm	12.2 - 13.2 mm
Size / Dimension [z]	0.48 in	0.48 - 0.52 "
Type	Intermediate Bus Converter	Intermediate Bus Converter
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	12 V	12 V

DC DC CONVERTER 12V 420W

Part	Applications	Voltage - Isolation	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Package / Case	Type	Voltage - Input (Max) [Max]	Control Features	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 1	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Features
Murata Power Solutions Inc. DVQ0135V2NBSC	ITE (Commercial)	2250 VDC	35 A	2.3 in	13.2 mm	36.8 mm	1.45 in	0.52 "	58.4 mm	95.2 %	16-DIP Module (15 Leads), 1/4 Brick	Intermediate Bus Converter	75 V	Active Low, Enable	1	36 V	12 V	Through Hole	85 °C	-40 °C	420 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO
Murata Power Solutions Inc. DVQ0135V2NC	ITE (Commercial)	2250 VDC	35 A	2.3 in	12.2 mm	36.8 mm	1.45 in	0.48 in	58.4 mm	92.5 %	16-DIP Module (15 Leads), 1/4 Brick	Intermediate Bus Converter	75 V	Active Low, Enable	1	36 V	12 V	Through Hole	85 °C	-40 °C	420 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	30	$ 81.75

General part information

Intermediate Bus Converter DC DC Converter 1 Output 12V 35A 36V - 75V Input
