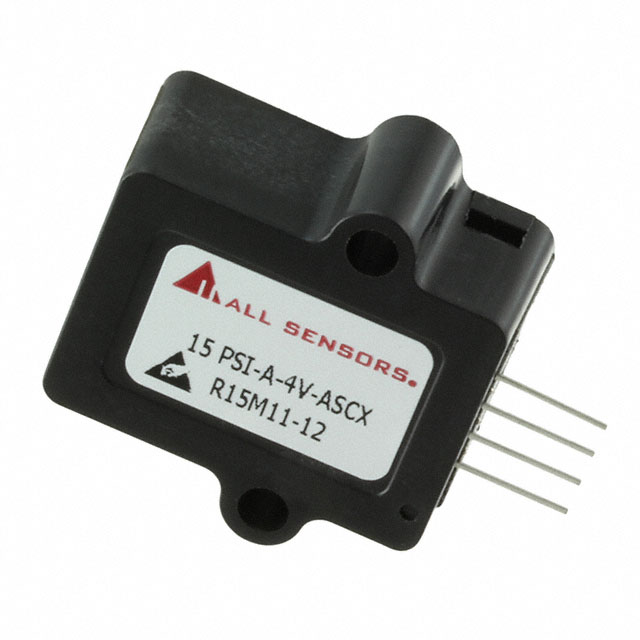

15 PSI-A-4V-ASCX

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA 0.19" 4.75V 4SIP

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA 0.19" 4.75V 4SIP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	15 PSI-A-4V-ASCX	A-4V-ASCX Series

Accuracy	0.5 %	0.5 %
Applications	Board Mount	Board Mount
Features	Temperature Compensated, Amplified Output	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	310.26 kPa	310.26 - 1034.21 kPa
Maximum Pressure [Max]	45 PSI	45 - 150 PSI
Mounting Type	Through Hole	Through Hole
Operating Pressure	-	206.84 - 689.48 kPa
Operating Pressure	-	30 - 100 PSI
Operating Pressure [custom]	15 PSI	15 PSI
Operating Pressure [custom]	103.42 kPa	103.42 kPa
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Output [Max]	4.75 V	4.75 V
Output [Min]	0.25 V	0.25 V
Output Type	Wheatstone Bridge	Wheatstone Bridge
Package / Case	4-SIP	4-SIP
Port Size	Male	Male
Port Size	0.19 "	0.19 "
Port Size	4.8 mm	4.8 mm
Port Style	Barbless	Barbless
Supplier Device Package	4-SIP	4-SIP
Termination Style	PC Pin	PC Pin
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V

SENSOR 15PSIA 0.19" 4.75V 4SIP

Part	Output [Max]	Output [Min]	Package / Case	Applications	Features	Mounting Type	Supplier Device Package	Port Style	Port Size	Port Size	Port Size	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Output Type	Operating Pressure [custom]	Operating Pressure [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Operating Pressure	Operating Pressure
Amphenol All Sensors Corporation 15 PSI-A-4V-ASCX	4.75 V	0.25 V	4-SIP	Board Mount	Amplified Output, Temperature Compensated	Through Hole	4-SIP	Barbless	Male	0.19 "	4.8 mm	4.5 V	5.5 V	PC Pin	Wheatstone Bridge	15 PSI	103.42 kPa	-25 °C	105 ░C	310.26 kPa	45 PSI	0.5 %
Amphenol All Sensors Corporation 30 PSI-A-4V-ASCX	4.75 V	0.25 V	4-SIP	Board Mount	Amplified Output, Temperature Compensated	Through Hole	4-SIP	Barbless	Male	0.19 "	4.8 mm	4.5 V	5.5 V	PC Pin	Wheatstone Bridge			-25 °C	105 ░C	689.48 kPa	100 PSI	0.5 %	206.84 kPa	30 PSI
Amphenol All Sensors Corporation 100 PSI-A-4V-ASCX	4.75 V	0.25 V	4-SIP	Board Mount	Amplified Output, Temperature Compensated	Through Hole	4-SIP	Barbless	Male	0.19 "	4.8 mm	4.5 V	5.5 V	PC Pin	Wheatstone Bridge			-25 °C	105 ░C	1034.21 kPa	150 PSI	0.5 %	689.48 kPa	100 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.19" (4.8mm) Tube 0.25 V ~ 4.75 V 4-SIP
