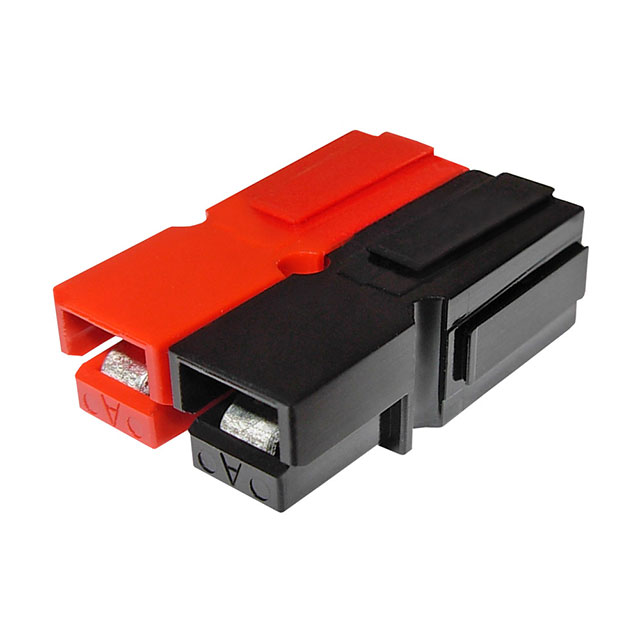

ASMPP30-1X2-RK

Active

Anderson Power Products, Inc.

CONN HSG 2POS BLK/RED

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONN HSG 2POS BLK/RED

Technical Specifications

Parameters and characteristics for this part

Heavy Duty Power Connectors 45A1X3VERTMT SHTTAILBLKHSG

Part	For Use With/Related Products	Specifications [custom]	Accessory Type	Color	Stacking Direction	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Current Rating (Amps)	Number of Positions	Fastening Type	Mounting Type	Contact Type	Note	Material - Insulation	Material - Insulation	Features	Number of Rows	Voltage Rating	Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Anderson Power Products, Inc. 115G3	15 30 45	7 8	Cable Clamp
Anderson Power Products, Inc. ASMPP30-1X2-RK				Black Red	Side to Side	-20 C	105 ░C	Crimp	55 A	2	Spring Retention	Free Hanging (In-Line)	Non-Gendered	Contacts Not Included	Polycarbonate	PC	Stackable	1	600 V
Anderson Power Products, Inc. 269G2								Crimp					Non-Gendered							Stamped	16 AWG	20 AWG	Copper Alloy	Tin
Anderson Power Products, Inc. 1327G8FP				Blue		-20 C	105 ░C	Crimp	55 A	1	Spring Retention	Free Hanging (In-Line)	Non-Gendered	Contacts Not Included	Polycarbonate	PC	Finger Proof Stackable	1	600 V
Anderson Power Products, Inc. PP45PC13S								PCB Solder					Non-Gendered										Copper Alloy	Tin	2.54 µm	100 µin
Anderson Power Products, Inc. ASMPP30-1X4-RKRK				Black Red	Side to Side			Crimp	55 A	4	Spring Retention	Free Hanging (In-Line)	Non-Gendered	Contacts Not Included			Stackable	1
Anderson Power Products, Inc. 1399G6-BK	15 30 45		Short Spacer	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heavy Duty Power Connectors 45A1X3VERTMT SHTTAILBLKHSG
