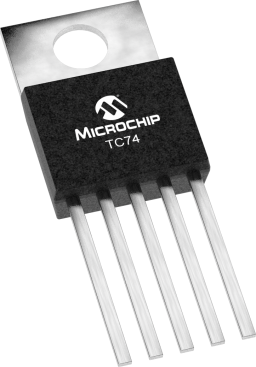

TC74A1-5.0VAT
ActiveTEMPERATURE SENSOR DIGITAL SERIAL (2-WIRE, I2C, SMBUS) 5-PIN(5+TAB) TO-220 TUBE
Deep-Dive with AI
Search across all available documentation for this part.
TC74A1-5.0VAT
ActiveTEMPERATURE SENSOR DIGITAL SERIAL (2-WIRE, I2C, SMBUS) 5-PIN(5+TAB) TO-220 TUBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TC74A1-5.0VAT | TC74 Series |
|---|---|---|
| - | - | |
| Accuracy - Highest (Lowest) | 2 °C | 2 °C |
| Accuracy - Highest (Lowest) | 3 °C | 3 °C |
| Features | Standby Mode | Standby Mode |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | I2C/SMBus | I2C/SMBus |
| Package / Case | TO-220-5 | TO-220-5, SC-74A, SOT-753 |
| Resolution | 7 b | 7 b |
| Sensing Temperature - Local [Max] | 125 °C | 125 °C |
| Sensing Temperature - Local [Min] | -40 °C | -40 °C |
| Sensor Type | Digital, Local | Digital, Local |
| Supplier Device Package | TO-220-5 | TO-220-5, SOT-23-5 |
| Test Condition [Max] | 125 °C | 125 °C |
| Test Condition [Max] | 85 °C | 85 °C |
| Test Condition [Min] | 0 °C | 0 °C |
| Test Condition [Min] | 25 °C | 25 °C |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 300 | $ 1.38 | |
| Microchip Direct | TUBE | 1 | $ 1.82 | |
| 25 | $ 1.51 | |||
| 100 | $ 1.38 | |||
| 1000 | $ 1.32 | |||
| 5000 | $ 1.30 | |||
| 10000 | $ 1.29 | |||
| Newark | Each | 100 | $ 1.43 | |
TC74 Series
Tiny Serial Digital Thermal Sensor
| Part | Resolution | Supplier Device Package | Test Condition [Max] | Test Condition [Max] | Test Condition [Min] | Test Condition [Min] | Sensor Type | Output Type | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Accuracy - Highest (Lowest) | Accuracy - Highest (Lowest) | Voltage - Supply [Min] | Voltage - Supply [Max] | Features | Sensing Temperature - Local [Max] | Sensing Temperature - Local [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology TC74A4-3.3VCTTR | |||||||||||||||||||
Microchip Technology TC74A1-5.0VCTTR | |||||||||||||||||||
Microchip Technology TC74A3-3.3VAT | |||||||||||||||||||
Microchip Technology TC74A3-5.0VCTTR | |||||||||||||||||||
Microchip Technology TC74A1-3.3VAT | 7 b | TO-220-5 | 125 °C | 85 °C | 0 °C | 25 °C | Digital, Local | I2C/SMBus | Through Hole | TO-220-5 | 125 °C | -40 °C | 2 °C | 3 °C | 2.7 V | 5.5 V | Standby Mode | 125 °C | -40 °C |
Microchip Technology TC74A5-5.0VAT | 7 b | TO-220-5 | 125 °C | 85 °C | 0 °C | 25 °C | Digital, Local | I2C/SMBus | Through Hole | TO-220-5 | 125 °C | -40 °C | 2 °C | 3 °C | 2.7 V | 5.5 V | Standby Mode | 125 °C | -40 °C |
Microchip Technology TC74A2-5.0VAT | |||||||||||||||||||
Microchip Technology TC74A5-3.3VAT | 7 b | TO-220-5 | 125 °C | 85 °C | 0 °C | 25 °C | Digital, Local | I2C/SMBus | Through Hole | TO-220-5 | 125 °C | -40 °C | 2 °C | 3 °C | 2.7 V | 5.5 V | Standby Mode | 125 °C | -40 °C |
Microchip Technology TC74A0-5.0VCTTR | |||||||||||||||||||
Microchip Technology TC74A1-5.0VAT | 7 b | TO-220-5 | 125 °C | 85 °C | 0 °C | 25 °C | Digital, Local | I2C/SMBus | Through Hole | TO-220-5 | 125 °C | -40 °C | 2 °C | 3 °C | 2.7 V | 5.5 V | Standby Mode | 125 °C | -40 °C |
Description
General part information
TC74 Series
TC74 is a serially accessible digital temperature sensor particularly suited for low cost and small form-factor applications. Temperature data is converted from the on-board thermal sensing element and made available as an 8-bit digital word. Communication with the TC74 is accomplished via a simple 2-wire SMBus/I2C™-compatible serial port. This bus also can be used to implement multi-drop/multi-zone monitoring. The SHDN bit in the CONFIG register can be used to activate the low-power Standby mode. Temperature resolution is 1°C. Conversion rate is a nominal 8 samples/sec. Power consumption in only 200 µA (5 µA Standby). Small size, low installed cost and ease of use make the TC74 an ideal choice for implementing thermal management in a variety of systems.
