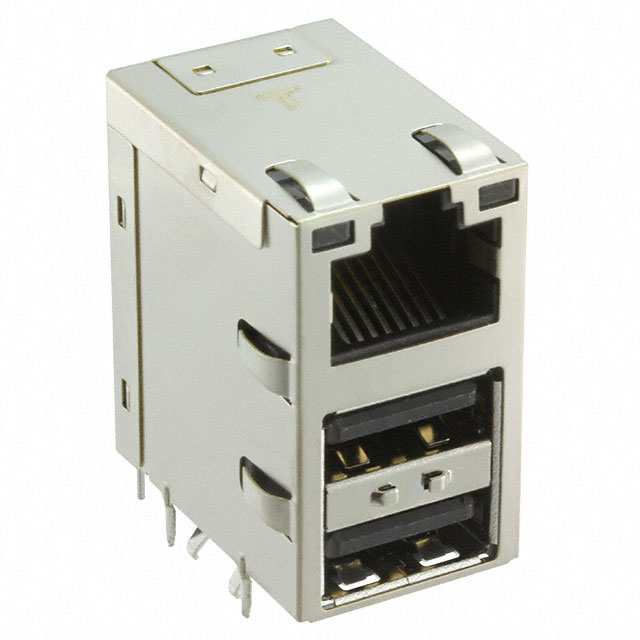

6620004-1

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T PCB

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

Specification	6620004-1

Applications	10/100 Base-T
Connector Type	RJ45 with USB A, Dual
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Board Lock, Decoupling Capacitance
Height Above Board	1.17 in
Height Above Board	29.72 mm
Housing Material	Polyethylene Terephthalate (PET)
LED Color	Orange - Yellow, Green
Mounting Type	Through Hole
Number of Cores per Jack	5
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

CONN JACK 1PORT 100 BASE-T PCB

Part	Height Above Board	Height Above Board	Number of Cores per Jack	Number of Rows	Number of Ports	Features	Connector Type	Shielding	Applications	Mounting Type	LED Color	Contact Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Shield Material	Tab Direction	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Orientation
TRP Connector B.V. 6620004-1	1.17 in	29.72 mm	5	1	1	Board Lock, Decoupling Capacitance	Dual, RJ45 with USB A	Shielded, EMI Finger	10/100 Base-T	Through Hole	Green, Orange - Yellow	Phosphor Bronze	Solder	70 °C	0 °C	Brass	Up	Polyethylene Terephthalate (PET)	50 µin	1.27 µm	Gold	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	180	$ 15.07

General part information

1 Port RJ45 with USB A, DualThrough Hole 10/100 Base-T
