Connectors, Interconnects
881016-2
ActiveTE Connectivity Raychem Cable Protection

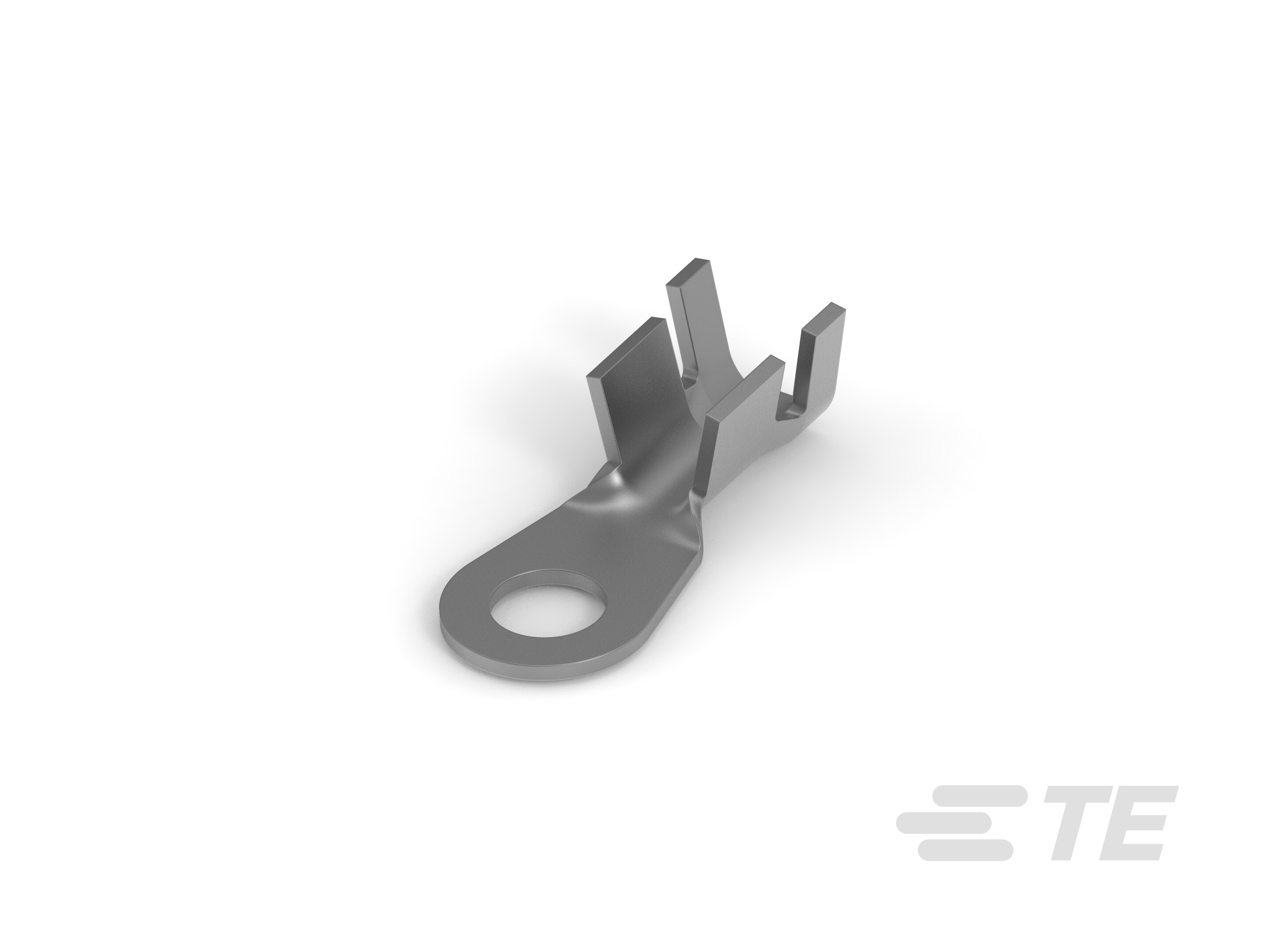

CONN RING CIRC 8-10AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects
881016-2
ActiveTE Connectivity Raychem Cable Protection
CONN RING CIRC 8-10AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 881016-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 6.6 mm |
| Insulation Diameter [Max] | 0.26 " |
| Insulation Diameter [Min] | 0.181 " |
| Insulation Diameter [Min] | 4.6 mm |
| Length - Overall [x] | 29 mm |
| Length - Overall [x] | 1.142 " |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.99 mm |
| Thickness | 0.039 in |
| Width - Outer Edges [y] | 0.472 in |
| Width - Outer Edges [y] | 12 mm |
| Wire Gauge [Max] | 10 AWG |
| Wire Gauge [Min] | 8 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100000 | $ 0.32 | |
Description
General part information
881016 Series
Ring Terminal Connector Circular 8-10 AWG Crimp
