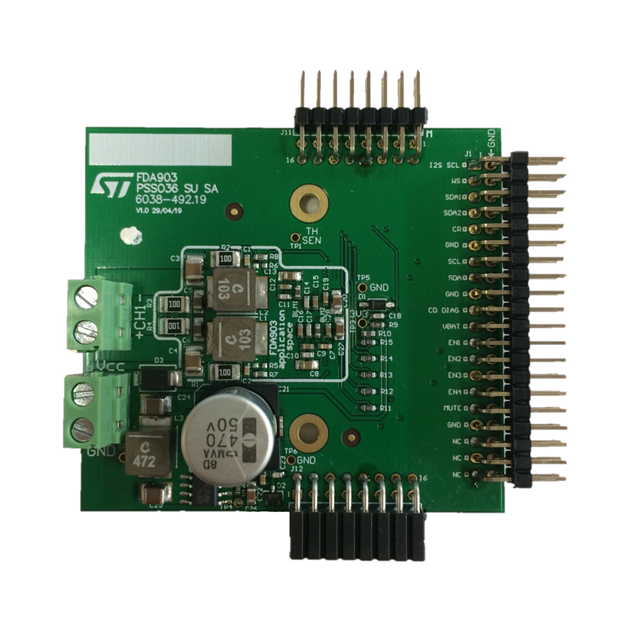

EVAL-FDA903U-SA
ActiveEVAL-FDA903U EVALUATION BOARD FOR FDA903U
EVAL-FDA903U-SA
ActiveEVAL-FDA903U EVALUATION BOARD FOR FDA903U
Description
General part information
FDA903 Series
The AEKD-STEREOAVAS is an AutoDevKit acoustic vehicle alerting system (AVAS) demo.
It consists of an AEK-AUD-C1D9031 compact AVAS board, an AEK-MCU-C4MLIT1 domain zone controller, and two AEK-LCD-DT028V1 display expansion boards, plus two loudspeakers and a switching button.
The AEK-AUD-C1D9031 communicates with the AEK-MCU-C4MLIT1 via CAN protocol, exchanging commands like start/stop to simulate alerting sounds used in e-vehicles.
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL-FDA903U-SA |
|---|---|
| Amplifier Type | Class D |
| Board Type | Fully Populated |
| Contents | Board |
| Output Type | 1-Channel (Mono) |
| Supplied Contents | Board(s) |
| Utilized IC / Part | FDA903U |
| Voltage - Supply (Maximum) | 18 V |
| Voltage - Supply (Minimum) | 3.3 V |
