520M40005CAR
ActiveCTS-Frequency Controls
XTAL OSC VCTCXO 40.0000MHZ SNWV
520M40005CAR
ActiveCTS-Frequency Controls
XTAL OSC VCTCXO 40.0000MHZ SNWV
Description
General part information
520M40005CAR

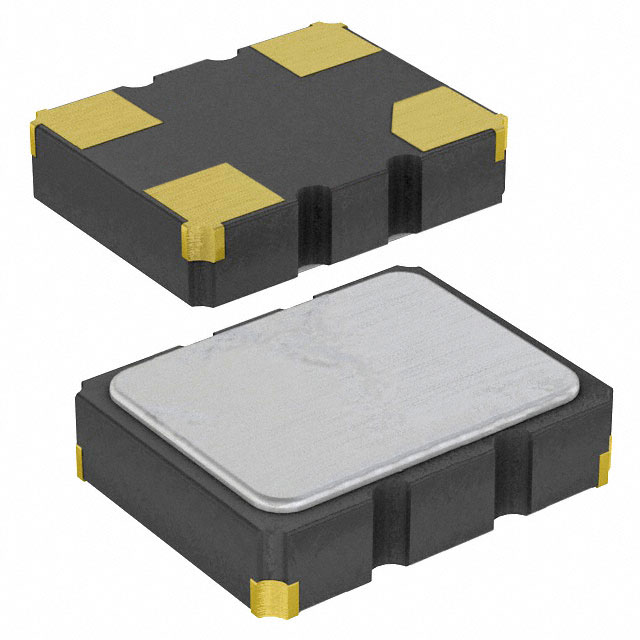

40 MHz VCTCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 520M40005CAR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 2.5 mA |
| Frequency | 40 MHz |
| Frequency Stability | 500 ppb |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | VCTCXO |
| Voltage - Supply | 1.8 V |
