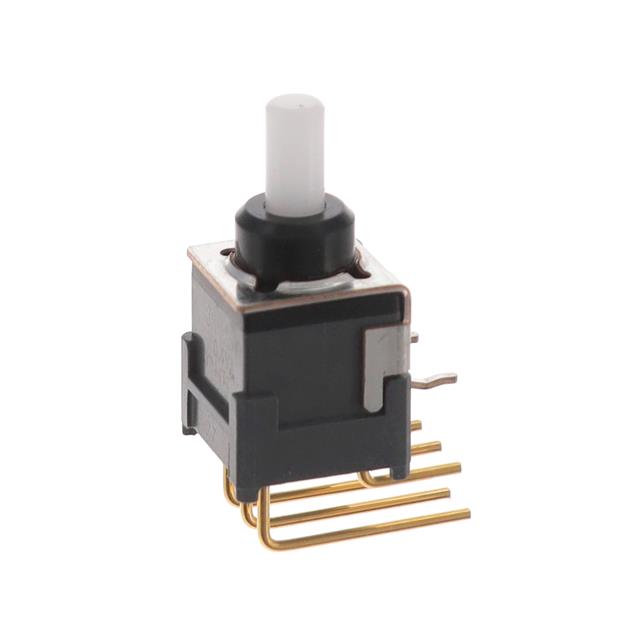

BB25AH
ActiveNKK Switches
PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON
BB25AH
ActiveNKK Switches
PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON
Description
General part information
BB25AH
Pushbutton Switch DPDT Standard Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | BB25AH |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | DPDT |
| Color - Actuator/Cap | White |
| Current Rating | 0.4 VA |
| Electrical Life (Cycles) | 50000 |
| Features | Antistatic |
| Mechanical Life (Cycles) | 50000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
