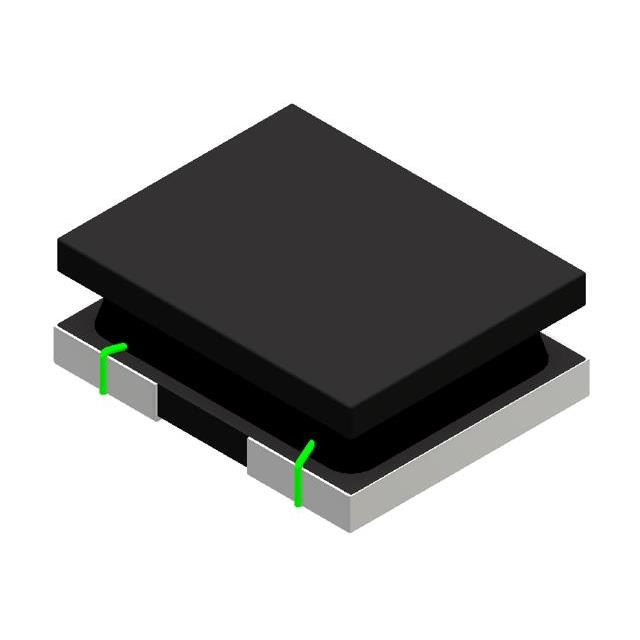

AHP 252012FA-2R2M
ActiveTAI-TECH Advanced Electronics Co., Ltd.
2.2 UH SHIELDED DRUM CORE, WIREW
AHP 252012FA-2R2M
ActiveTAI-TECH Advanced Electronics Co., Ltd.
2.2 UH SHIELDED DRUM CORE, WIREW
Description
General part information
AHP 252012FA-2R2M
2.2 µH Unshielded Wirewound Inductor 3 A 84mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | AHP 252012FA-2R2M |
|---|---|
| Current - Saturation (Isat) | 3.4 A |
| Current Rating | 3 A |
| DC Resistance (DCR) (Max) | 84 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.098 in |
| Tolerance | 20 % |
| Type | Wirewound |
