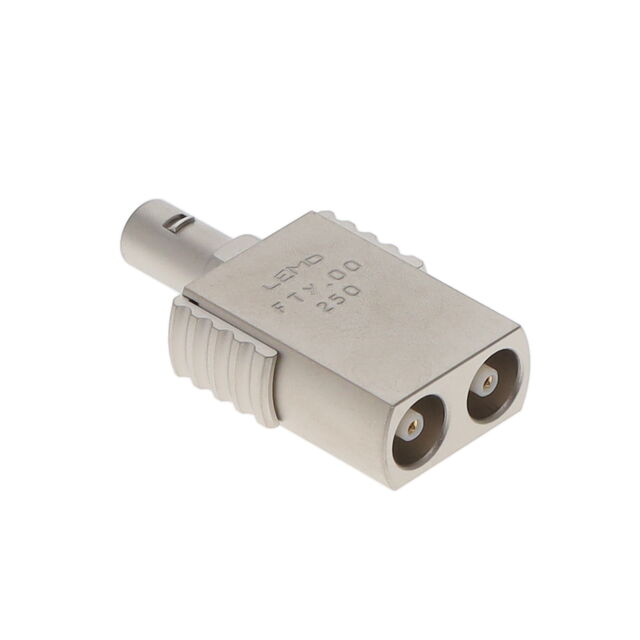

FTY.00.250.NTF
ActiveLEMO
CONN ADAPT PLUG-JACK NIM-CAMAC
Deep-Dive with AI
Search across all available documentation for this part.

FTY.00.250.NTF
ActiveLEMO
CONN ADAPT PLUG-JACK NIM-CAMAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | FTY.00.250.NTF | FTY.00.250 Series |
---|---|---|
Adapter Series | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549, Dual | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549, Dual |
Adapter Type | Plug to Jack | Plug to Jack |
Body Finish | Nickel | Chrome, Nickel |
Body Material | Brass | Brass |
Center Contact Material | Brass, Bronze | Brass, Bronze |
Center Contact Plating | Gold | Gold |
Conversion Type | Same Series | Same Series |
Convert From (Adapter End) | NIM-CAMAC CD/N 549 Plug, Male Pin | NIM-CAMAC CD/N 549 Plug, Male Pin |
Convert To (Adapter End) | NIM-CAMAC CD/N 549 Jack, Female Socket (2) | NIM-CAMAC CD/N 549 Jack, Female Socket (2) |
Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
Fastening Type | Push-Pull | Push-Pull |
Impedance | 50 Ohms | 50 Ohms |
Ingress Protection | IP50 | IP50 |
Mating Cycles | 5000 | 5000 |
Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
Style | Straight | Straight |
FTY.00.250 Series
CONN ADAPT PLUG-JACK NIM-CAMAC
Part | Adapter Type | Convert From (Adapter End) | Center Contact Plating | Style | Mating Cycles | Mounting Type | Ingress Protection | Fastening Type | Conversion Type | Body Material | Convert To (Adapter End) | Impedance | Dielectric Material | Center Contact Material | Adapter Series | Body Finish |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO FTY.00.250.CTF | Plug to Jack | NIM-CAMAC CD/N 549 Plug, Male Pin | Gold | Straight | 5000 | Free Hanging (In-Line) | IP50 | Push-Pull | Same Series | Brass | NIM-CAMAC CD/N 549 Jack, Female Socket (2) | 50 Ohms | Polytetrafluoroethylene (PTFE) | Brass, Bronze | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549, Dual | Chrome |
LEMO FTY.00.250.NTF | Plug to Jack | NIM-CAMAC CD/N 549 Plug, Male Pin | Gold | Straight | 5000 | Free Hanging (In-Line) | IP50 | Push-Pull | Same Series | Brass | NIM-CAMAC CD/N 549 Jack, Female Socket (2) | 50 Ohms | Polytetrafluoroethylene (PTFE) | Brass, Bronze | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549, Dual | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Bulk | 1 | $ 69.06 | |
10 | $ 53.59 | |||
25 | $ 48.69 | |||
50 | $ 45.39 | |||
100 | $ 42.40 | |||
250 | $ 38.87 |
Description
General part information
FTY.00.250 Series
Adapter Coaxial Connector NIM-CAMAC CD/N 549 Plug, Male Pin To NIM-CAMAC CD/N 549 Jack, Female Socket (2) 50 Ohms
