IPS1025HFQ

Active

STMicroelectronics

HIGH EFFICIENCY, HIGH-SIDE SWITCH WITH EXTENDED DIAGNOSTICS, SMART DRIVING FOR CAPACITIVE LOADS AND SHORT PROPAGATION DELAY AT POWER-ON

Deep-Dive with AI

Search across all available documentation for this part.

Documents +3

IPS1025HFQ

Active

STMicroelectronics

HIGH EFFICIENCY, HIGH-SIDE SWITCH WITH EXTENDED DIAGNOSTICS, SMART DRIVING FOR CAPACITIVE LOADS AND SHORT PROPAGATION DELAY AT POWER-ON

Deep-Dive with AI

Documents +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IPS1025HFQ	IPS1025HF Series

	-	-
Current - Output (Max) [Max]	2.4 A	2.4 A
Fault Protection	Current Limiting (Fixed), UVLO, Over Temperature, Over Load	Current Limiting (Fixed), Short Circuit, Over Temperature, UVLO, Over Voltage, Over Load
Input Type	Non-Inverting	Non-Inverting
Interface	Logic	On/Off, Logic
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Output Configuration	High Side	High Side
Output Type	N-Channel	N-Channel

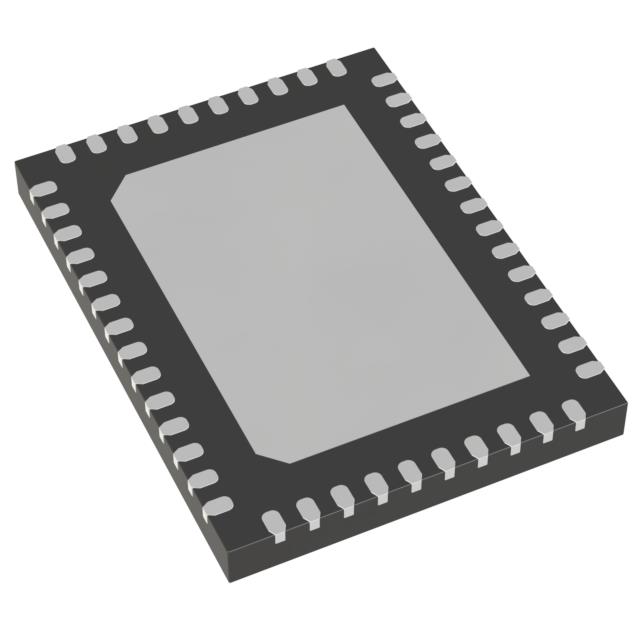

Package / Case	48-VFQFN Exposed Pad	24-PowerBSOP, 48-VFQFN Exposed Pad
Package / Case	-	7.5 mm
Package / Case	-	0.295 in
Ratio - Input:Output [custom]	1:1	1:1
Rds On (Typ)	12 mOhm	12 mOhm
Supplier Device Package	48-QFN (8x6)	PowerSSO-24, 48-QFN (8x6)
Switch Type	General Purpose	General Purpose
Voltage - Load [Max]	60 V	60 V
Voltage - Load [Min]	8.65 V	8.65 V
Voltage - Supply (Vcc/Vdd)	False	False
Voltage - Supply (Vcc/Vdd)	-	60 V
Voltage - Supply (Vcc/Vdd)	-	8.65 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.60
		10	$ 5.92
		25	$ 5.60
		100	$ 4.85
		250	$ 4.60
		500	$ 4.13
		1000	$ 3.48
	Digi-Reel®	1	$ 6.60
		10	$ 5.92
		25	$ 5.60
		100	$ 4.85
		250	$ 4.60
		500	$ 4.13
		1000	$ 3.48
	Tape & Reel (TR)	2500	$ 3.31
Newark	Each (Supplied on Cut Tape)	1	$ 5.91
		10	$ 4.53
		25	$ 4.18
		50	$ 3.99
		100	$ 3.80
		250	$ 3.62
		500	$ 3.51
		1000	$ 3.42

IPS1025HF Series

High efficiency, high-side switch with extended diagnostics, smart driving for capacitive loads and short propagation delay at power-on

Part	Interface	Rds On (Typ)	Fault Protection	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Ratio - Input:Output [custom]	Package / Case [y]	Package / Case	Package / Case [y]	Number of Outputs	Output Type	Supplier Device Package	Switch Type	Input Type	Mounting Type	Output Configuration	Voltage - Load [Max]	Voltage - Load [Min]	Current - Output (Max) [Max]
STMicroelectronics IPS1025HFTR
STMicroelectronics IPS1025HFTR	On/Off	12 mOhm	Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit, UVLO	60 V	8.65 V	1:1	7.5 mm	24-PowerBSOP	0.295 in	1	N-Channel	PowerSSO-24	General Purpose	Non-Inverting	Surface Mount	High Side
STMicroelectronics IPS1025HFQ
STMicroelectronics IPS1025HFQ	Logic	12 mOhm	Current Limiting (Fixed), Over Load, Over Temperature, UVLO			1:1		48-VFQFN Exposed Pad		1	N-Channel	48-QFN (8x6)	General Purpose	Non-Inverting	Surface Mount	High Side	60 V	8.65 V	2.4 A
STMicroelectronics IPS1025HFTR
STMicroelectronics IPS1025HF
STMicroelectronics IPS1025HFTR
STMicroelectronics IPS1025HFQ

Description

General part information

IPS1025HF Series

The IPS1025HF and IPS1025HFQ are single high-side switch ICs able to drive capacitive, resistive or inductive loads with one side connected to ground.

The 60 V operating range and RDS-ON = 12 mΩ (typ.), combined with the extended diagnostic (Over Load, Over-temperature) and the < 60 us propagation delay time at startup (enabling Class 3 for interface types C and D), make the IC suitable for applications implementing the proper architectures to address higher SIL levels.

The very low RDS-ON (≤ 25 mΩ up to TJ = 125 °C) makes the IC suitable for the applications with up to 2.4 A steady state operating current.
