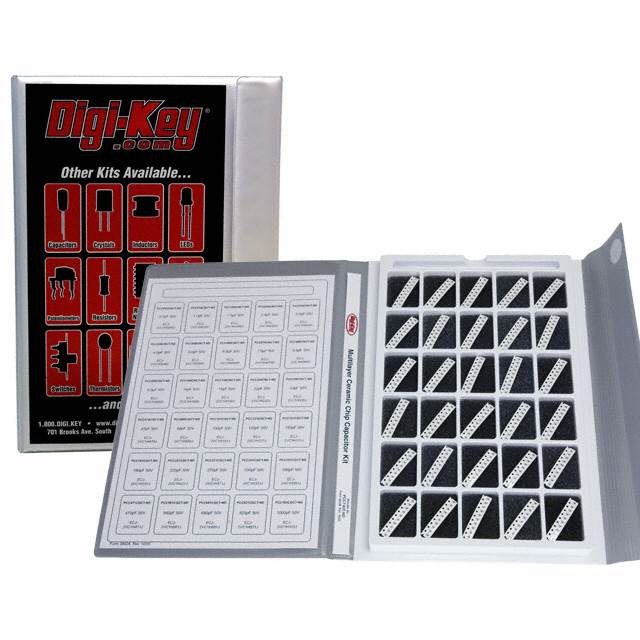

Specification	Q39559

Applications	General Purpose
Capacitance Range (Max)	1000 pF
Capacitance Range (Min)	0.5 pF
Kit Type	Ceramic
Mounting Type	Surface Mount, MLCC
Packages Included	0805 (2012 Metric)
Quantity	300 pcs
Quantity per Value	10 Each
Quantity Values	30 Values
Tolerance	±0.5pF, ±0.25pF, ±5%
Tolerance	0.5 pF, 5 %, 0.25 pF
Voltage - Rated	50 V

- Series

...

Part	Coil Voltage	Relay Type	Seal Rating	Coil Current	Must Release Voltage	Operate Time	Approval Agency	Contact Material	Coil Type	Must Operate Voltage	Release Time	Termination Style	Contact Form	Operating Temperature (Min)	Operating Temperature (Max)	Contact Rating (Current)	Mounting Type	Switching Voltage DC (Max)	Load - Max Switching (Real Power)	Coil Resistance	On-State Resistance (Max)	Load Current	Package Length	Package Name	Package Width	Voltage - Input	Output Type	Voltage - Load (Min)	Voltage - Load (Max)	Circuit	Load - Max Switching (Apparent Power)	Switching Voltage AC (Max)	Coil Insulation	Voltage - Rated (Min)	Voltage - Rated (Max)	Applications	Packages Included	Capacitance Range (Min)	Capacitance Range (Max)	Quantity	Quantity Values	Quantity per Value	Tolerance	Kit Type	Form A Count	Pin Count
Panasonic Electronic Components TXD2-5V	5 V	General Purpose	Fully Sealed	40 mA	0.5 VDC	4 ms	BSI cURus	Gold (Au) Silver (Ag)	Non Latching	3.75 VDC	4 ms	PC Pin	2 2 Form C C DPDT Form	-40 °C	85 °C	2 A	Through Hole	220 VDC	440 W	125 Ohms
Panasonic Electronic Components AQV252							UR					PC Pin		-40 °C	85 °C		Through Hole				1.4 Ohms	400 mA	0.3 in	6-DIP	7.62 mm	1.14 VDC	AC DC	0 V	60 V	SPST-NO (1 Form A)
Panasonic Electronic Components JS1-5V	5 V	General Purpose	Fully Sealed	72 mA	0.5 VDC	10 ms	CSA TUV UR VDE	Silver Alloy	Non Latching	3.5 VDC	10 ms	PC Pin	1 C Form SPDT	-40 °C	70 °C	10 A	Through Hole	100 VDC	1000 W	69.4 Ohms											2500 VA	250 VAC	Class E
Panasonic Electronic Components JQ1-5V	5 V	General Purpose		80 mA	0.25 VDC	5 ms	CSA TUV UR VDE	Silver Alloy	Non Latching	3.75 VDC	2 ms	PC Pin	1 C Form SPDT	-40 °C	70 °C	5 A	Through Hole	110 VDC	550 W	62.5 Ohms											1250 VA	250 VAC	Class E
Panasonic Electronic Components Q1967141																	Surface Mount																	2 V	16 V	General Purpose	2917 (7343 Metric)	8.2 µF	470 µF	180 pcs	12 Values	15 Each	20 %	Aluminum (Polymer)
Panasonic Electronic Components AQY274							BSI cURus					PC Pin		-40 °C	85 °C		Through Hole				3.2 Ohms	350 mA	10.16 mm	4-DIP	10.16 mm	1.16 VDC	AC DC	0 V	400 V	SPST-NO (1 Form A)
Panasonic Electronic Components AQY272							BSI cURus					PC Pin		-40 °C	85 °C		Through Hole				180 mOhms	2 A	10.16 mm	4-DIP	10.16 mm	1.16 VDC	AC DC	0 V	60 V	SPST-NO (1 Form A)
Panasonic Electronic Components ALD14H	4.5 VDC	General Purpose		44.6 mA	0.22 VDC	10 ms	CSA TUV UR VDE	Silver Nickel (AgNi)	Non Latching	3.38 VDC	10 ms	PC Pin	SPST-NO	-40 °C	70 °C	3 A	Through Hole	30 VDC	90 W	101 Ohms											831 VA	277 VAC													1
Panasonic Electronic Components TQ4-5V	5 V	Telecom		56.2 mA	0.5 VDC	3 ms	CSA UR	Gold (Au) Silver (Ag)	Non Latching	3.75 VDC	3 ms	PC Pin	4 C Form PDT	-40 °C	70 °C	1 A	Through Hole	110 VDC	110 W	89 Ohms											125 VA	125 VAC														4
Panasonic Electronic Components HY1-9V	9 VDC	Telecom	Fully Sealed	16.7 mA	0.9 VDC	5 ms	CSA UR	Gold (Au) Silver (Ag)	Non Latching	6.75 VDC	4 ms	PC Pin	1 C Form SPDT	-40 °C	70 °C	1 A	Through Hole	60 VDC	60 W	540 Ohms
