1055790-1

Active

TE Application Tooling

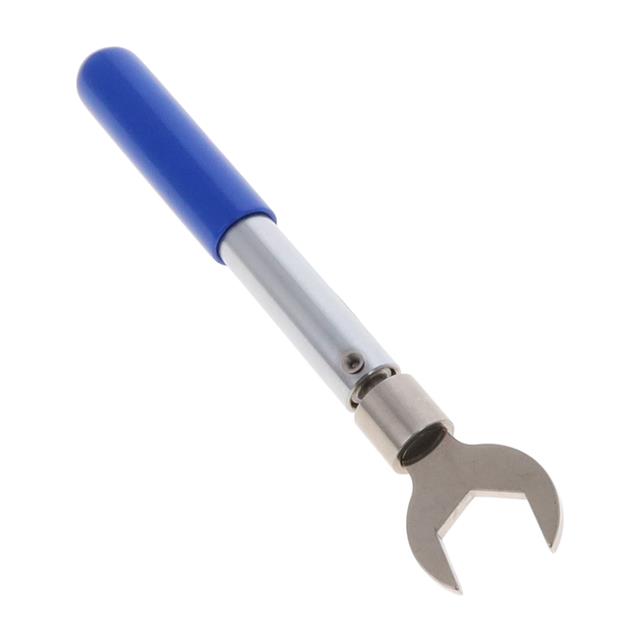

WRENCH TORQUE 13/16" 6.97"

Search across all available documentation for this part.

Active

TE Application Tooling

WRENCH TORQUE 13/16" 6.97"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Torque Wrench Wrench 13/16" 6.97" (177.0mm) Length

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1055790-1	1055 Series

	-	-
Accessory Type	-	Locator, Dielectric Recess Tool, Collet, Locator Tool
Cable Group	-	RD-316 Double Braid
Compatible Tools	-	1055236-1
End - Size	0.8125 "	0.15625 - 0.8125 in
Features	Protective Cover, Interchangeable Head	Protective Cover, Interchangeable Head
For Use With/Related Products	-	Coaxial Connectors, Coaxial, RF - SSMA, Coaxial, RF - SMA, Coaxial, RF Connectors, SMA Connectors, Connectors, RG-402/U, Coaxial Cables, TNC, BNC, Coaxial, RF, 1056527-1
Length	6.97 in	6.97 in
Length	177 mm	177 mm
Length	-	4.49 in
Length	-	114 mm
Measurement Type	SAE (Standard)	SAE (Standard)
Ratcheting	-	False
Specifications	-	0.151
Tool Type	Torque Wrench	Hand Crimper, Insertion Tool, Trim Tool, Cable Pointer, Torque Wrench, Cable Bender, SMA Torque Wrench, Die Set
Tool Type Feature	-	Without Die Set
Torque	Fixed	Fixed
Torque	1.6 Nm	0.9 - 1.6 Nm
Torque	14 in-lbs	8 - 14 in-lbs
Usage	-	Coaxial Connectors
Weight	-	136.08 g
Weight	-	0.3 lb
Wire Entry Location	-	Side Entry

CRIMP TOOL

Part	Tool Type	Wire Entry Location	For Use With/Related Products	Accessory Type	Tool Type Feature
TE Application Tooling 1055236-1	Hand Crimper	Side Entry	Coaxial Connectors
TE Application Tooling 1055464-1
TE Application Tooling 1055461-1			Coaxial, RF - SSMA	Locator
TE Application Tooling 1055251-1	Insertion Tool		Coaxial, RF - SMA
TE Application Tooling 1055780-1	Hand Crimper	Side Entry	Coaxial, RF Connectors		Without Die Set
TE Application Tooling 1055284-1
TE Application Tooling 1055450-1			SMA Connectors	Dielectric Recess Tool
TE Application Tooling 1055455-1	Trim Tool		SMA Connectors
TE Application Tooling 1055827-1			Connectors	Collet
TE Application Tooling 1055263-1
