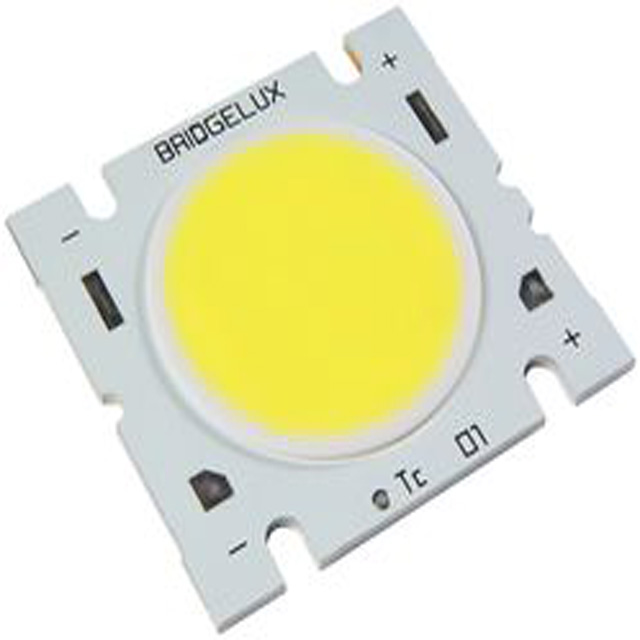

BXRA-W3500-00S0E

Obsolete

BRIDGELUX

LED COB RS WARM WHT SQU 2700K

Search across all available documentation for this part.

Obsolete

BRIDGELUX

LED COB RS WARM WHT SQU 2700K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRA-W3500-00S0E	BXRA-W3500 Series

CCT (K)	2700 K	2700 K
Color	White, Warm	White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	80	80
Current - Max [Max]	3 A	3 A
Current - Test	2.1 A	2.1 A
Height [z]	3 mm	3 mm
Lens Type	Domed	Domed
Lumens/Watt @ Current - Test	72 lm/W	72 - 77 lm/W
Luminous Flux @ Current/Temperature	3700 lm	3700 - 4000 lm
Size / Dimension [x]	45.6 mm	45.6 mm
Size / Dimension [y]	2 in	2 in
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	24.6 V	24.6 V

LED COB RS WARM WHT SQU 3000K

Part	Color	Current - Test	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Lens Type	Configuration	Current - Max [Max]	Type	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Viewing Angle	Height [z]	Size / Dimension [x]	Size / Dimension [y]	CCT (K)
BRIDGELUX BXRA-W3500-00Q0E	Warm, White	2.1 A	80	4000 lm	Domed	Square	3 A	Chip On Board (COB)	24.6 V	77 lm/W	120 °	3 mm	45.6 mm	2 in
BRIDGELUX BXRA-W3500-00S0E	Warm, White	2.1 A	80	3700 lm	Domed	Square	3 A	Chip On Board (COB)	24.6 V	72 lm/W	120 °	3 mm	45.6 mm	2 in	2700 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) RS White, Warm Square
