ISOBLOCK V-4C (50V 5V)

Active

Verivolt LLC

TRANSDUCER VOLTAGE 9-28VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIsoBlock V Wiring Diagram Datasheet

ISOBLOCK V-4C (50V 5V)

Active

Verivolt LLC

TRANSDUCER VOLTAGE 9-28VDC

Deep-Dive with AI

DocumentsIsoBlock V Wiring Diagram Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1353.05

Description

General part information

ISOBLOCK V-4C Series

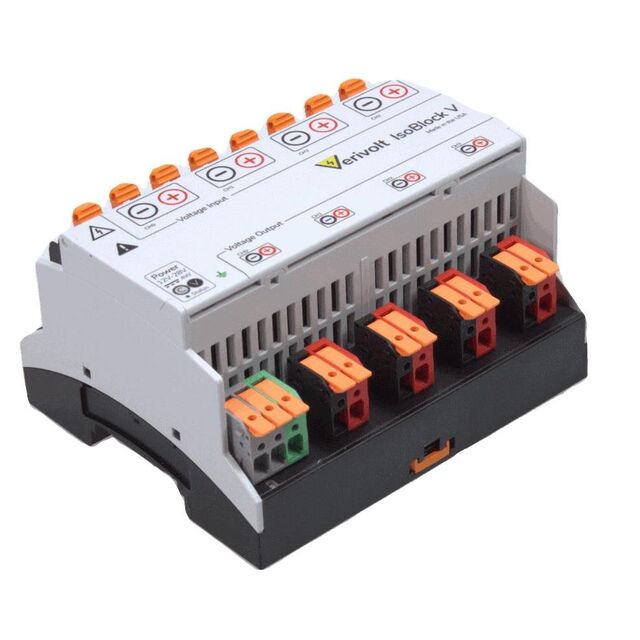

Voltage Transducer ±50V Input ±5V Output 9 ~ 28VDC DIN Rail

Documents

Technical documentation and resources

IsoBlock V Wiring Diagram

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ISOBLOCK V-4C (50V 5V)	ISOBLOCK V-4C Series

Accuracy	0.2 %	0.1 - 0.2 %
Input Range	50 V	50 - 1500 V
Input Range	-	150 - 500 VAC
Input Range	-	-500 - 0 VAC
Isolation	1500 V	1500 V
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output	5 V	5 - 10 V
Output	-	7 VAC
Output	-	0 VAC
Response Time	2.8 µs	2.8 µs
Termination Style	Spring Terminal	Spring Terminal
Type	Voltage Transducer	Voltage Transducer
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	9 V	9 V

ISOBLOCK V-4C Series

TRANSDUCER VOLTAGE 9-28VDC

Part	Response Time	Termination Style	Isolation	Output	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Input Range	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Input Range [Max]	Input Range [Min]	Output [Max]	Output [Min]
Verivolt LLC ISOBLOCK V-4C (750V 10V0.1%)	2.8 µs	Spring Terminal	1500 V	10 V	0.1 %	70 °C	-25 °C	750 V	Voltage Transducer	28 V	9 V	DIN Rail
Verivolt LLC ISOBLOCK V-4C (1500V 10V)	2.8 µs	Spring Terminal	1500 V	10 V	0.2 %	70 °C	-25 °C	1500 V	Voltage Transducer	28 V	9 V	DIN Rail
Verivolt LLC ISOBLOCK V-4C (500VAC 7VAC0.1%)	2.8 µs	Spring Terminal	1500 V		0.1 %	70 °C	-25 °C		Voltage Transducer	28 V	9 V	DIN Rail	500 VAC	0 VAC	7 VAC	0 VAC
Verivolt LLC ISOBLOCK V-4C (500VAC 7VAC)	2.8 µs	Spring Terminal	1500 V		0.2 %	70 °C	-25 °C		Voltage Transducer	28 V	9 V	DIN Rail	500 VAC	0 VAC	7 VAC	0 VAC
Verivolt LLC ISOBLOCK V-4C (50V 10V0.1%)	2.8 µs	Spring Terminal	1500 V	10 V	0.1 %	70 °C	-25 °C	50 V	Voltage Transducer	28 V	9 V	DIN Rail
Verivolt LLC ISOBLOCK V-4C (300V 10V)	2.8 µs	Spring Terminal	1500 V	10 V	0.2 %	70 °C	-25 °C	300 V	Voltage Transducer	28 V	9 V	DIN Rail
Verivolt LLC ISOBLOCK V-4C (150VAC 7VAC)	2.8 µs	Spring Terminal	1500 V		0.2 %	70 °C	-25 °C		Voltage Transducer	28 V	9 V	DIN Rail	150 VAC	0 VAC	7 VAC	0 VAC
Verivolt LLC ISOBLOCK V-4C (300V 10V0.1%)	2.8 µs	Spring Terminal	1500 V	10 V	0.1 %	70 °C	-25 °C	300 V	Voltage Transducer	28 V	9 V	DIN Rail
Verivolt LLC ISOBLOCK V-4C (500V 5V)	2.8 µs	Spring Terminal	1500 V	5 V	0.2 %	70 °C	-25 °C		Voltage Transducer	28 V	9 V	DIN Rail	500 V	-500 V
Verivolt LLC ISOBLOCK V-4C (750V 5V)	2.8 µs	Spring Terminal	1500 V	5 V	0.2 %	70 °C	-25 °C	750 V	Voltage Transducer	28 V	9 V	DIN Rail
