1102075-1
ActiveTE Connectivity AMP Connectors

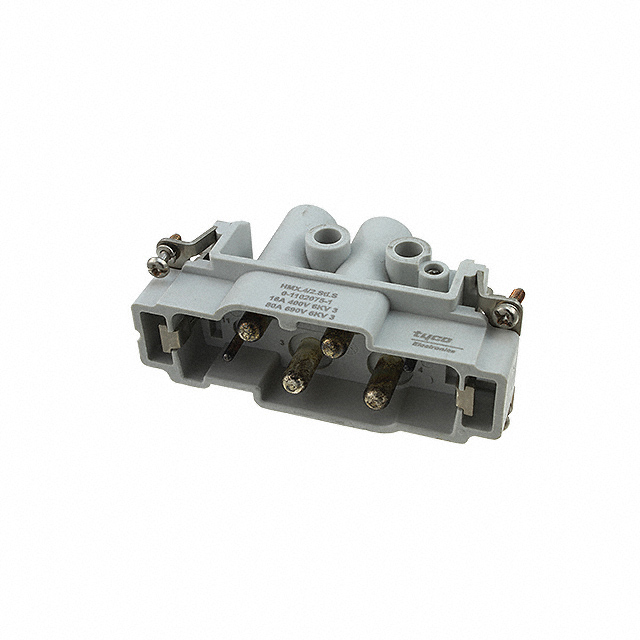

INSERT MALE 4+2POS+1GND SCREW
Deep-Dive with AI
Search across all available documentation for this part.
1102075-1
ActiveTE Connectivity AMP Connectors
INSERT MALE 4+2POS+1GND SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1102075-1 |
|---|---|
| Color | Gray |
| Contact Finish | Nickel |
| Contact Material | Brass |
| Current Rating (Amps) | 16 A |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 4, 2 |
| Number of Positions | Ground |
| Size | 6 |
| Termination Style | Screw |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1102075 Series
INSERT MALE 4+2POS+1GND SCREW
| Part | Current Rating (Amps) | Contact Finish | Contact Material | Gender | Size | Number of Positions | Number of Positions | Housing Material | Color | Voltage Rating | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1102075-1 | 16 A | Nickel | Brass | Male | 6 | 2, 4 | Ground | Polybutylene Terephthalate (PBT), Glass Filled | Gray | 400 V | Screw |
Description
General part information
1102075 Series
Male Insert Gray 4+2+Ground Position Screw
Documents
Technical documentation and resources
No documents available
