71V124SA15TYG8
ActiveIDT, Integrated Device Technology Inc
71V124 - 3.3V STATIC RAM 1 MEG (
Deep-Dive with AI
Search across all available documentation for this part.
71V124SA15TYG8
ActiveIDT, Integrated Device Technology Inc
71V124 - 3.3V STATIC RAM 1 MEG (
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 71V124SA15TYG8 | 71V124 Series |
|---|---|---|
| Access Time | 15 ns | 10 - 15 ns |
| Memory Format | SRAM | SRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 128K x 8 | 128K x 8 |
| Memory Size | 1 Mbit | 1 Mbit |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 0.3 in, 7.62 mm | 0.3 - 7.62 in |
| Package / Case | 32-BSOJ | 32-SOIC, 32-BSOJ |
| Package / Case | - | 0.4 in |
| Package / Case | - | 10.16 mm |
| Package / Case | - | 10.16 mm |
| Package / Case | - | 10.16 mm |
| Supplier Device Package | 32-SOJ | 32-TSOP II, 32-SOJ |
| Technology | SRAM - Asynchronous | SRAM - Asynchronous |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 3 V | 3 - 3.15 V |
| Write Cycle Time - Word, Page | 15 ns | 10 - 15 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 119 | $ 2.53 | |
| Cut Tape (CT) | 1 | $ 3.16 | ||
| 10 | $ 2.81 | |||
| Digi-Reel® | 1 | $ 3.16 | ||
| 10 | $ 2.81 | |||
| Tape & Reel (TR) | 1000 | $ 2.27 | ||
71V124 Series
IC SRAM 1MBIT PARALLEL 32TSOP II
| Part | Memory Interface | Access Time | Voltage - Supply [Max] | Voltage - Supply [Min] | Memory Format | Mounting Type | Memory Size | Memory Organization | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Memory Type | Package / Case [x] | Package / Case [y] | Package / Case | Write Cycle Time - Word, Page | Technology | Package / Case | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDT, Integrated Device Technology Inc 71V124SA10PH | Parallel | 10 ns | 3.6 V | 3.15 V | SRAM | Surface Mount | 1 Mbit | 128K x 8 | 70 °C | 0 °C | 32-TSOP II | Volatile | 0.4 in | 10.16 mm | 32-SOIC | 10 ns | SRAM - Asynchronous | |||
IDT, Integrated Device Technology Inc 71V124SA15TYG8 | Parallel | 15 ns | 3.6 V | 3 V | SRAM | Surface Mount | 1 Mbit | 128K x 8 | 70 °C | 0 °C | 32-SOJ | Volatile | 32-BSOJ | 15 ns | SRAM - Asynchronous | 0.3 in, 7.62 mm | ||||
IDT, Integrated Device Technology Inc 71V124SA15TY | Parallel | 15 ns | 3.6 V | 3 V | SRAM | Surface Mount | 1 Mbit | 128K x 8 | 70 °C | 0 °C | 32-SOJ | Volatile | 32-BSOJ | 15 ns | SRAM - Asynchronous | 0.3 in, 7.62 mm | ||||
IDT, Integrated Device Technology Inc 71V124SA15YG | Parallel | 15 ns | 3.6 V | 3 V | SRAM | Surface Mount | 1 Mbit | 128K x 8 | 70 °C | 0 °C | 32-SOJ | Volatile | 32-BSOJ | 15 ns | SRAM - Asynchronous | 10.16 mm | 10.16 mm | |||
IDT, Integrated Device Technology Inc 71V124SA10TYG8 | Parallel | 10 ns | 3.6 V | 3.15 V | SRAM | Surface Mount | 1 Mbit | 128K x 8 | 70 °C | 0 °C | 32-SOJ | Volatile | 32-BSOJ | 10 ns | SRAM - Asynchronous | 0.3 in, 7.62 mm |
Description
General part information
71V124 Series

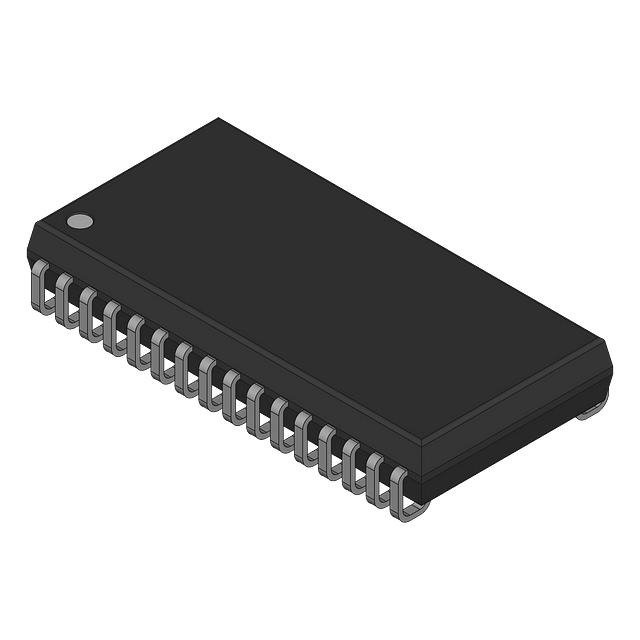

SRAM - Asynchronous Memory IC 1Mbit Parallel 15 ns 32-SOJ
Documents
Technical documentation and resources
No documents available
