87527-2
ActiveTE Connectivity AMP Connectors

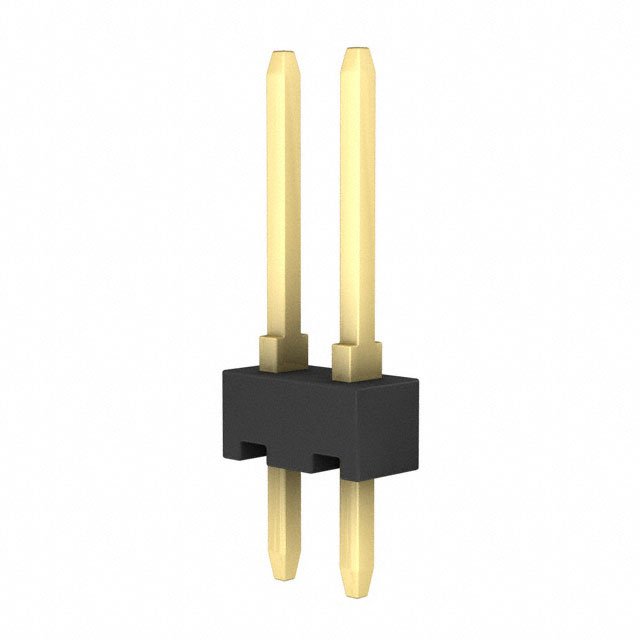

CONN HEADER VERT 2POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87527-2
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 2POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87527-2 | 87527 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | Flash | Flash |
| Contact Length - Mating [x] | 0.318 " | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm | 8.08 mm |
| Contact Length - Post | 3.91 mm | 3.91 mm |
| Contact Length - Post | 0.154 in | 0.154 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.09 in | 0.09 in |
| Insulation Height | 2.29 mm | 2.29 mm |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 2 | 2 - 40 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Overall Contact Length | 14.27 mm | 14.27 mm |
| Overall Contact Length | 0.562 in | 0.562 in |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
87527 Series
CONN HEADER VERT 3POS 2.54MM
| Part | Contact Finish - Mating | Mounting Type | Contact Length - Mating [x] | Contact Length - Mating [x] | Number of Rows | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Overall Contact Length | Overall Contact Length | Termination | Contact Shape | Connector Type | Number of Positions Loaded | Contact Finish Thickness - Post | Shrouding | Insulation Height | Insulation Height | Insulation Material | Contact Type | Insulation Color | Style | Fastening Type | Contact Length - Post | Contact Length - Post | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87527-3 | Gold | Through Hole | 0.318 " | 8.08 mm | 1 | Gold | 0.1 in | 2.54 mm | 14.27 mm | 0.562 in | Solder | Square | Header | All | Flash | Unshrouded | 0.09 in | 2.29 mm | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Black | Board to Board, Cable | Push-Pull | 3.91 mm | 0.154 in | Phosphor Bronze | 30 Áin | 0.76 Ám | |
TE Connectivity AMP Connectors 4-87527-0 | Gold | Through Hole | 0.318 " | 8.08 mm | 1 | Gold | 0.1 in | 2.54 mm | 14.27 mm | 0.562 in | Solder | Square | Header | All | Flash | Unshrouded | 0.09 in | 2.29 mm | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Black | Board to Board, Cable | Push-Pull | 3.91 mm | 0.154 in | Phosphor Bronze | 30 Áin | 0.76 Ám | 40 |
TE Connectivity AMP Connectors 87527-2 | Gold | Through Hole | 0.318 " | 8.08 mm | 1 | Gold | 0.1 in | 2.54 mm | 14.27 mm | 0.562 in | Solder | Square | Header | All | Flash | Unshrouded | 0.09 in | 2.29 mm | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Black | Board to Board, Cable | Push-Pull | 3.91 mm | 0.154 in | Phosphor Bronze | 30 Áin | 0.76 Ám | 2 |
TE Connectivity AMP Connectors 87527-7 | Gold | Through Hole | 0.318 " | 8.08 mm | 1 | Gold | 0.1 in | 2.54 mm | 14.27 mm | 0.562 in | Solder | Square | Header | All | Flash | Unshrouded | 0.09 in | 2.29 mm | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Black | Board to Board, Cable | Push-Pull | 3.91 mm | 0.154 in | Phosphor Bronze | 30 Áin | 0.76 Ám | 7 |
