D12V0HA1U2SLP-7B

Active

Diodes Inc

SURGE PROTECTION PP X1-DFN1006-2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques

D12V0HA1U2SLP-7B

Active

Diodes Inc

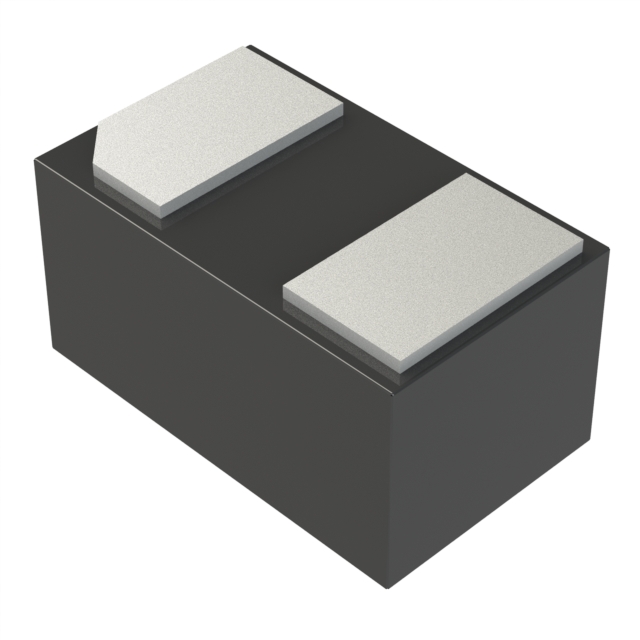

SURGE PROTECTION PP X1-DFN1006-2

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D12V0HA1U2SLP-7B

Applications	General Purpose
Capacitance @ Frequency	140 pF
Current - Peak Pulse (10/1000µs)	30 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-XDFN
Power - Peak Pulse	630 W
Power Line Protection	False
Supplier Device Package	X1-DFN1006-2 (Type SA)
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	13.5 V
Voltage - Clamping (Max) @ Ipp	17 V
Voltage - Reverse Standoff (Typ)	12 V

D12V0S1U2LP1608 Series

LOW CAPACITANCE BIDIRECTIONAL TVS DIODE

Part	Voltage - Breakdown (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Reverse Standoff (Typ)	Applications	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Capacitance @ Frequency	Package / Case	Mounting Type	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp	Qualification	Grade	Bidirectional Channels [custom]	Package / Case
Diodes Inc D12V0S1U2LP1608-7	13 V	-55 °C	150 °C	Zener	12 V	General Purpose	1	22 V	U-DFN1608-2	380 pF	2-UFDFN	Surface Mount	55 A
Diodes Inc D12V0H1U2LP1610-7	13 V	-55 °C	150 °C	Zener	12 V	General Purpose	1	20 V	U-DFN1610-2 (Type B)	350 pF	0603 (1610 Metric)	Surface Mount	50 A	1000 W	1 kW
Diodes Inc D12V0S1U3LP20-7	13.3 V	-65 °C	150 °C	Zener	12 V	General Purpose	1	23.7 V	U-DFN2020-3 (Type C)		3-UDFN Exposed Pad	Surface Mount	13.5 A	4000 W	4 kW
Diodes Inc D12V0HA1U2LPQ-7B	13.5 V	-55 °C	150 °C	Zener	12 V		1		X1-DFN1006-2	110 pF	0402 (1006 Metric)	Surface Mount	25 A	500 W		20 V	AEC-Q101	Automotive
Diodes Inc D12V0L1B2LP-7B	13 V	-65 °C	150 °C	Zener	12 V			25 V	X1-DFN1006-2	10 pF	0402 (1006 Metric)	Surface Mount	4 A	100 W			AEC-Q101	Automotive	1
Diodes Inc D12V0X1B2CSP-7	13 V	-65 °C	150 °C	Zener	12 V	General Purpose		26 V	X2-DSN0603-2	0.5 pF	0201	Surface Mount	3 A	78 W					1	0603 Metric
Diodes Inc D12V0HA1U2SLP-7B	13.5 V	-55 °C	150 °C	Zener	12 V	General Purpose	1		X1-DFN1006-2 (Type SA)	140 pF	2-XDFN	Surface Mount	30 A	630 W		17 V
Diodes Inc D12V0M1U2S9-7	13 V	-65 °C	150 °C	Zener	12 V	General Purpose	1	25 V	SOD-923	20 pF	SOD-923	Surface Mount	4 A	100 W
Diodes Inc D12V0H1U2WS-7	13.3 V	-55 °C	125 ¯C	Zener	12 V		1	24 V	SOD-323	180 pF	SC-76 SOD-323	Surface Mount	25 A	600 W			AEC-Q101	Automotive
Diodes Inc D12V0H1U2LP-7B	13.3 V	-65 °C	150 °C	Zener	12 V	General Purpose	1		X1-DFN1006-2	80 pF	0402 (1006 Metric)	Surface Mount	13 A	300 W		23 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.05
		30000	$ 0.05
		50000	$ 0.04

Description

General part information

D12V0S1U2LP1608 Series

These new generation TVS Dx(x)VxS1U3LP20 are a series of unidirectional high surge transient voltage suppressors designed to protect power rails such as batteries and VBUS from ESD or surge events. The VRWM range is from 7.5V to 48V. This component contains a unidirectional TVS diode in a single package.
