1-1337463-0

Active

TE Connectivity AMP Connectors

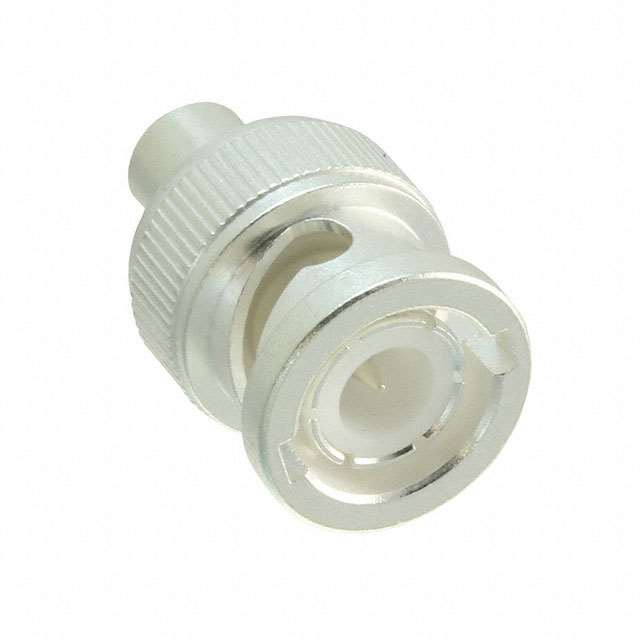

CONN TERMINATOR PLUG BNC 50OHM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN TERMINATOR PLUG BNC 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337463-0

Body Finish	Silver
Body Material	Brass
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Finish	Silver
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	1 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

CONN TERMINATOR PLUG BNC 50OHM

Part	Dielectric Material	Body Finish	Connector Style	Contact Material	Impedance	Body Material	Contact Finish	Mounting Type	Connector Type	Frequency - Max [Max]
TE Connectivity AMP Connectors 1-1337463-0	Polytetrafluoroethylene (PTFE)	Silver	BNC	Brass	50 Ohms	Brass	Silver	Cap, Free Hanging	Male Pin, Plug	1 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Plug, Male Pin BNC 50 Ohms
