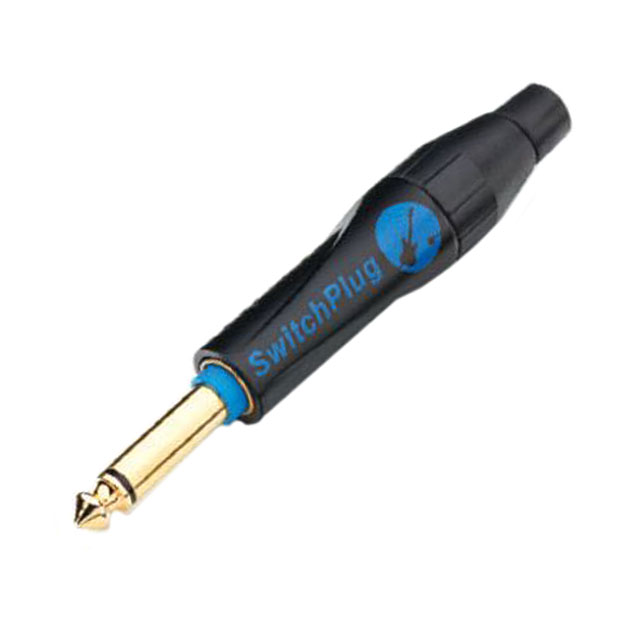

TM1PB
ActiveAMPHENOL AUDIO
CONN SWITCH PLUG 1/4"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TM1PB
ActiveAMPHENOL AUDIO
CONN SWITCH PLUG 1/4"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TM1PB |
|---|---|
| Body Color | Silver |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Zinc Alloy |
| Includes | 4 pcs - 1 Connector, 1 Strain Relief, 2 pc Cover |
| Internal Switch(s) | False |
| Mating Length/Depth | 1.19 in |
| Mating Length/Depth | 30.3 mm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.92 | |
| 10 | $ 7.02 | |||
| 25 | $ 6.75 | |||
| 50 | $ 6.48 | |||
| 100 | $ 6.34 | |||
Description
General part information
TM1PB
6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Cup
