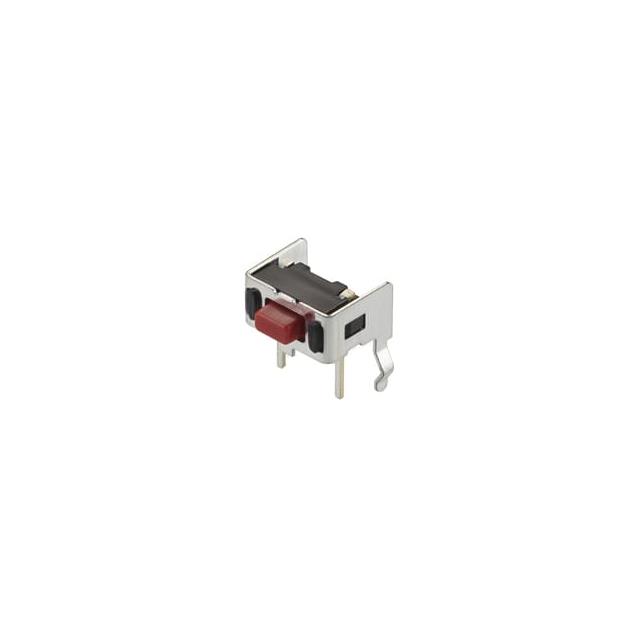

SKHLLFA010
ActiveAlps Alpine
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKHLLFA010
ActiveAlps Alpine
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKHLLFA010 |
|---|---|
| Actuator Length, Right Angle | 3.5 mm |
| Actuator Orientation | Side Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 30000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 260 gf |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.65 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.61 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.40 | |||
| 3000 | $ 0.38 | |||
| 5000 | $ 0.35 | |||
Description
General part information
SKHLLFA010
Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
