1318125-2

Active

TE Connectivity AMP Connectors

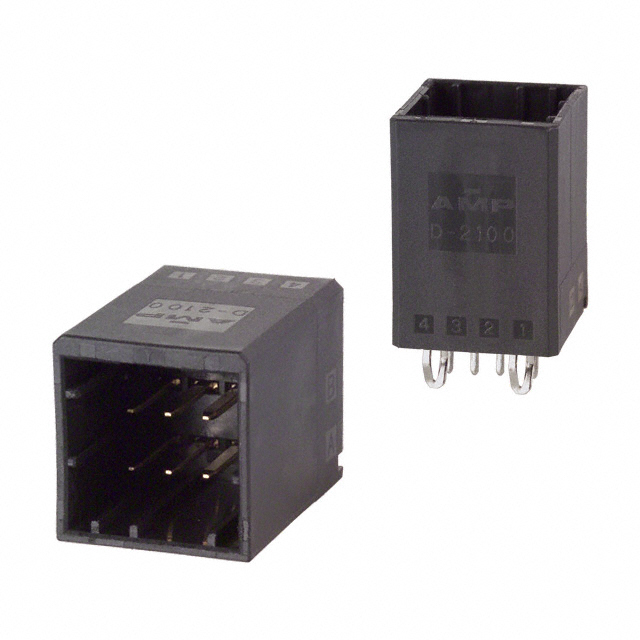

CONN HEADER VERT 8POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 2.5MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1318125-2	1318125 Series

Applications	General Purpose, Industrial	General Purpose, Industrial
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Length - Post [x]	0.134 in	0.134 in
Contact Length - Post [x]	3.4 mm	3.4 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Rectangular	Rectangular
Contact Type	Tab	Tab
Current Rating (Amps)	5 A	5 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	17.78 mm	17.78 mm
Insulation Height	0.7 in	0.7 in
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	2.5 mm	2.5 mm
Pitch - Mating	0.098 in	0.098 in
Row Spacing - Mating	0.148 in	0.148 in
Row Spacing - Mating	3.75 mm	3.75 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

CONN HEADER VERT 8POS 2.5MM

Part	Contact Finish - Post	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Material	Insulation Color	Connector Type	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Fastening Type	Applications	Contact Shape	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Number of Positions Loaded	Style	Termination	Material Flammability Rating	Voltage Rating	Insulation Height	Insulation Height	Insulation Material
TE Connectivity AMP Connectors 1318125-1	Tin	Tab	0.134 in	3.4 mm	8	Gold	15 µin	0.38 µm	Through Hole	Copper Alloy	Black	Header	Shrouded - 4 Wall	105 ░C	-55 °C	2	Detent Lock	General Purpose, Industrial	Rectangular	2.5 mm	0.098 in	0.148 in	3.75 mm	5 A	All	Board to Board, Cable	Solder	UL94 V-0	250 VDC	17.78 mm	0.7 in	Glass Filled, Polyester, Thermoplastic
TE Connectivity AMP Connectors 1318125-2	Tin	Tab	0.134 in	3.4 mm	8	Gold	15 µin	0.38 µm	Through Hole	Copper Alloy	Black	Header	Shrouded - 4 Wall	105 ░C	-55 °C	2	Detent Lock	General Purpose, Industrial	Rectangular	2.5 mm	0.098 in	0.148 in	3.75 mm	5 A	All	Board to Board, Cable	Solder	UL94 V-0	250 VDC	17.78 mm	0.7 in	Glass Filled, Polyester, Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 8 position 0.098" (2.50mm)
